01

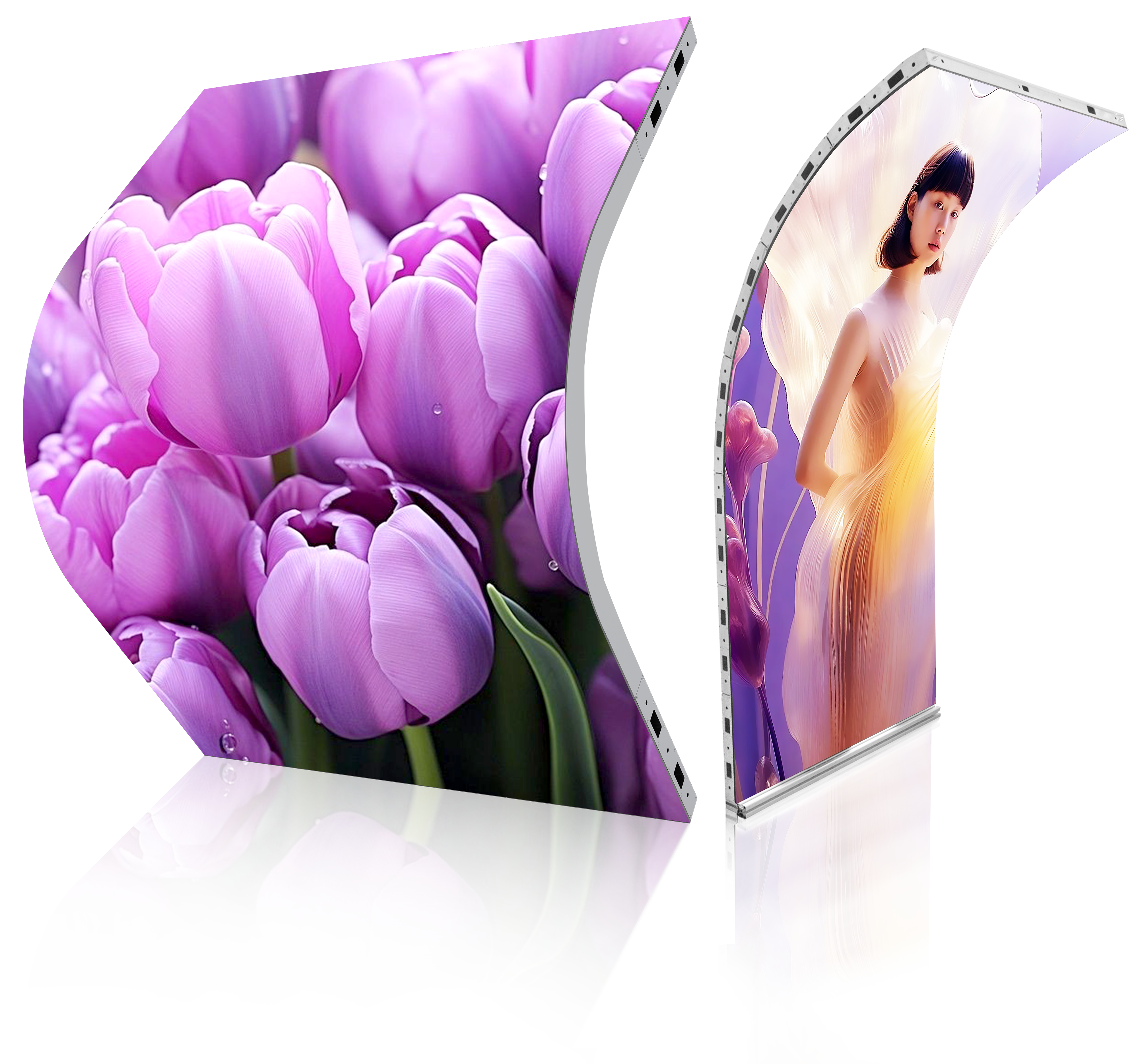

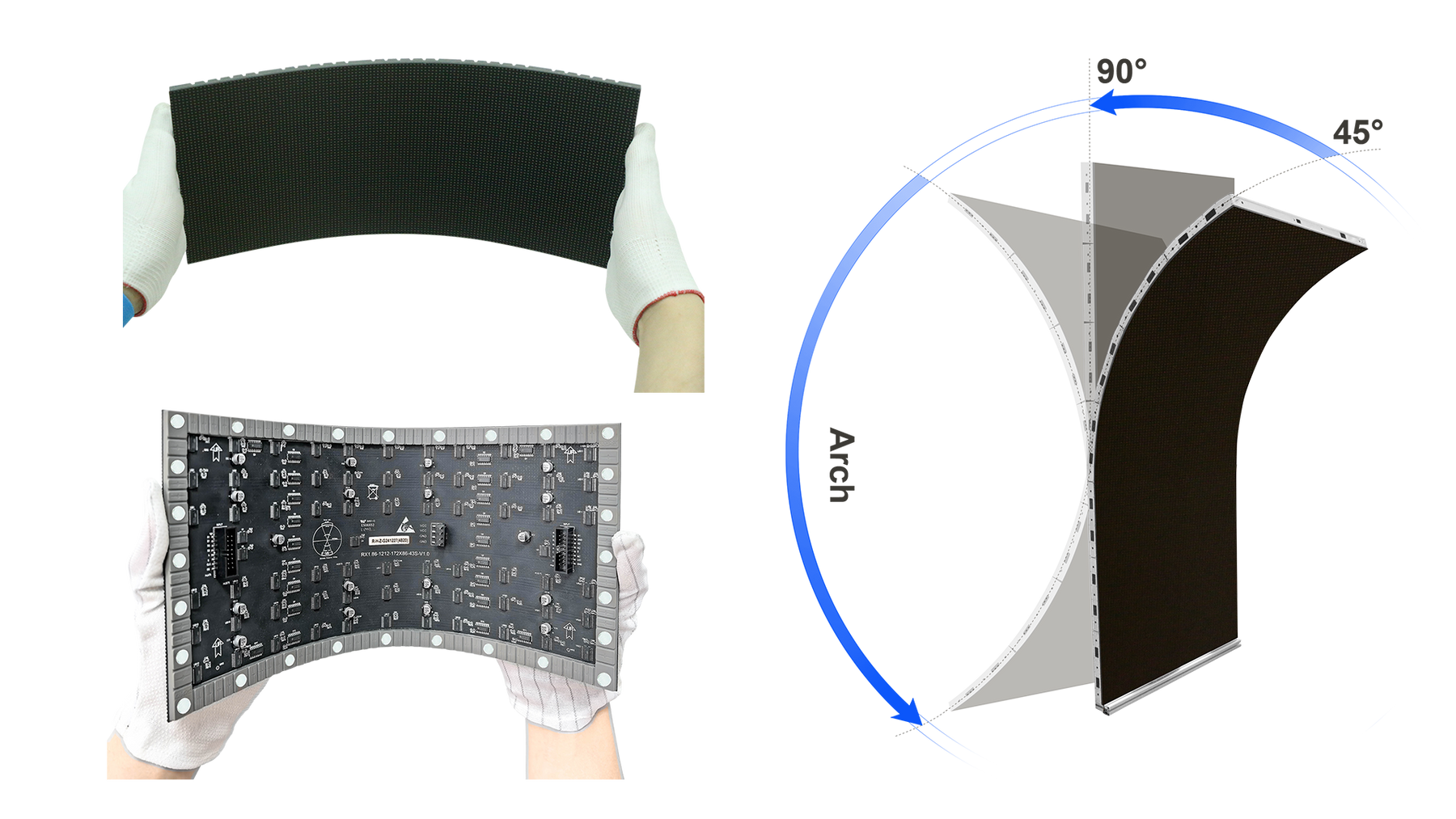

Customized Shape
- One cabinet design can adapt to various curved surfaces.
- Supports arch, curved, and customized indoor LED display structures.

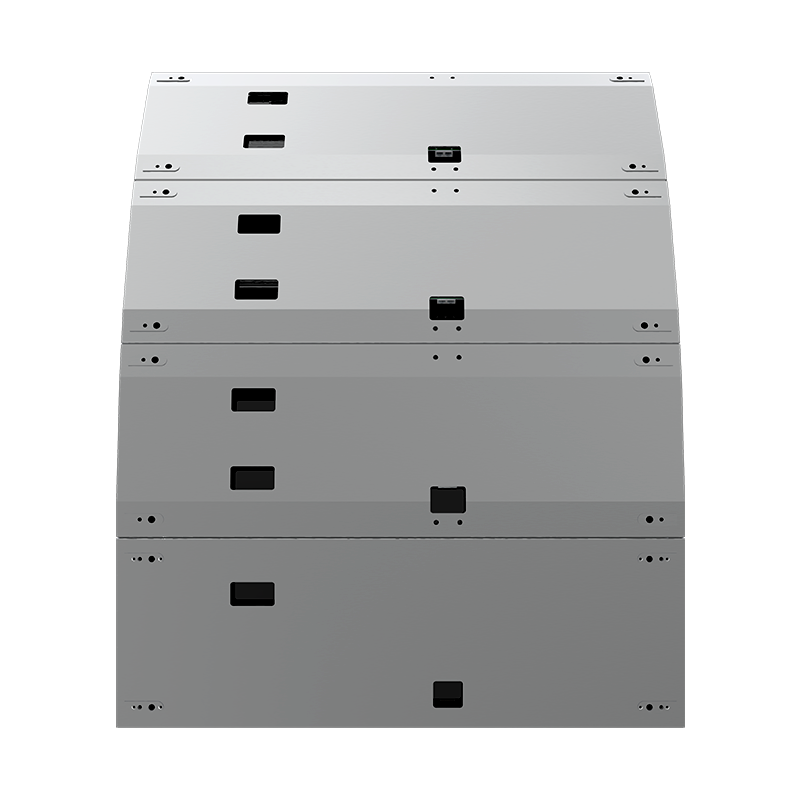

Astin
- Pixel Pitch : P1.25/1.56/1.86/2/2.5/4
- LED Technology : SMD/GOB
- Cabinet Size : 320x960x52
- Module Size : 320x160
- Service Access : Front
Choose options
Astin
Sale price$0.00
Customized Shape
High Precision
02

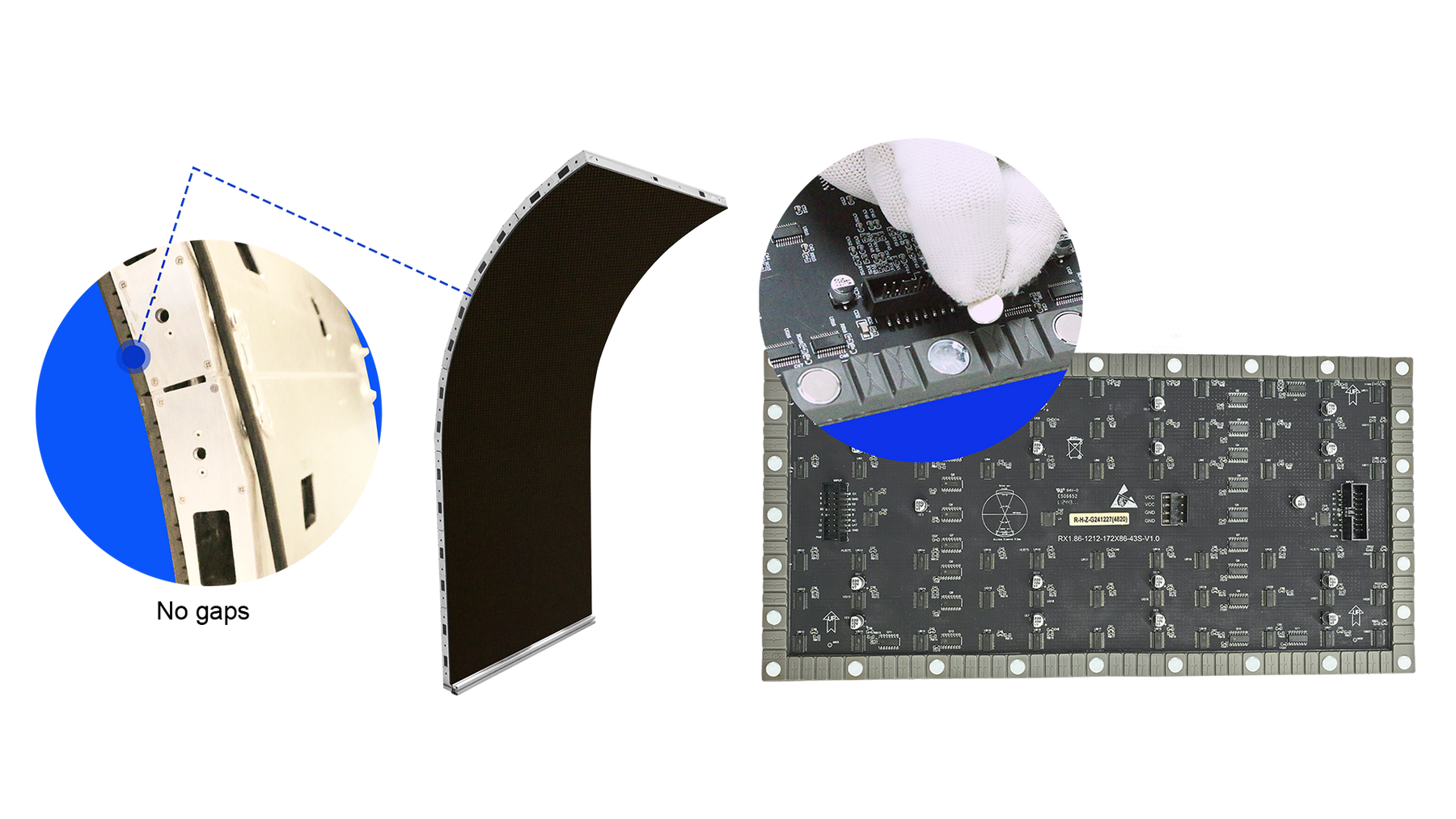

High Precision
- Flatness tolerance reaches ±0.05 mm for a smoother display surface.
- High-precision assembly helps reduce gaps and improve visual consistency.
03

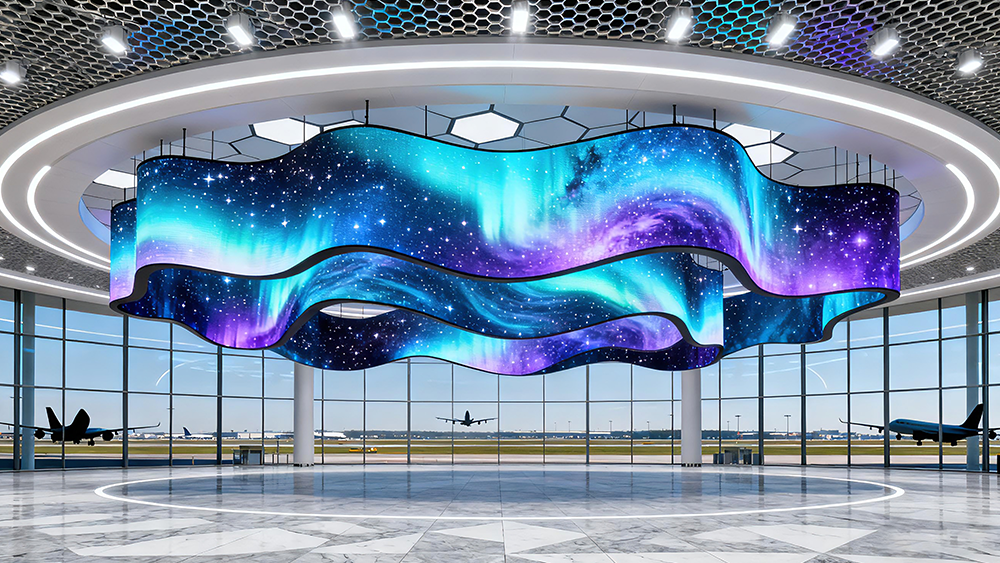

Immersive Applications
- Suitable for casinos, entertainment venues, airports, retail spaces, and themed commercial environments.
- Ideal for archways, curved ceilings, creative entrances, and immersive visual installations.
CASE STUDY

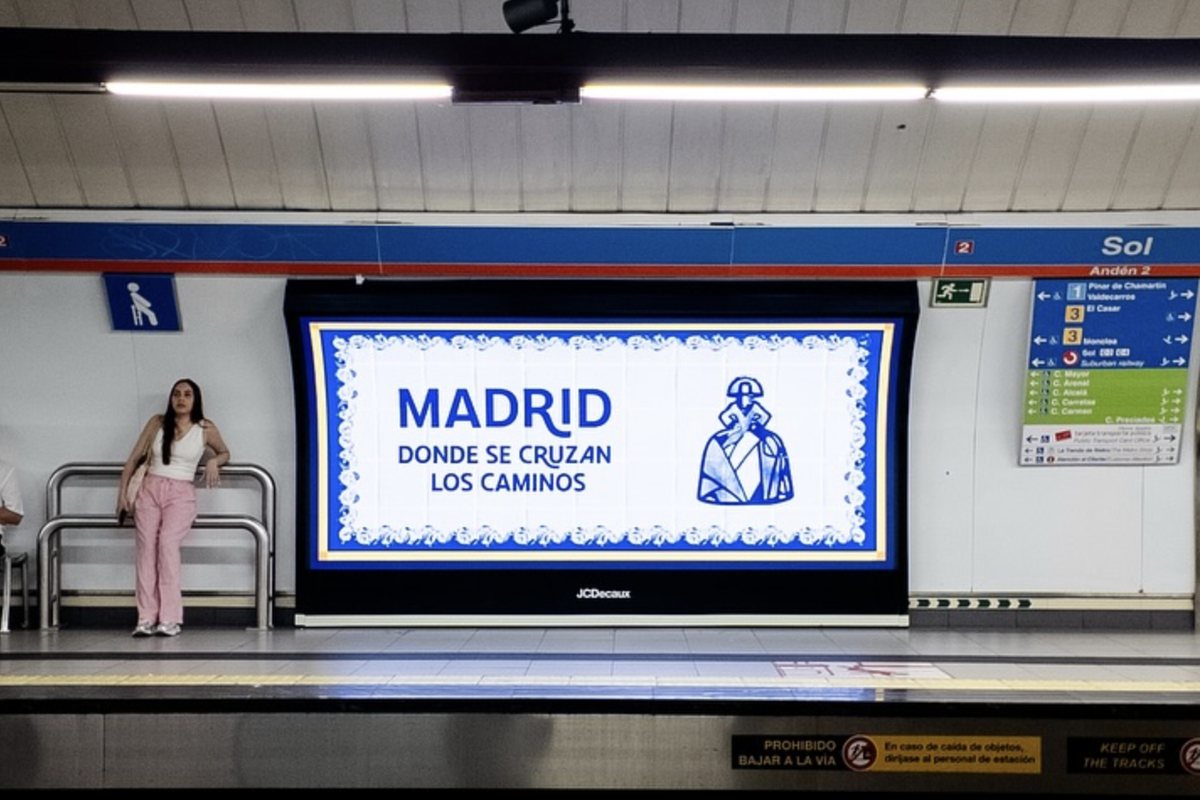

Madrid Metro Display Upgrade with Astin Flexible LED Modules
AiPixel delivered an Astin P1.86 flexible LED module solution for the Madrid Metro upgrade, creating customized curved displays for complex station environments with reduced mold development cost.
SOLUTIONS
TECHNICAL SPECIFICATIONS
| Parameter | P1.25 | P1.56 | P1.86 | P2 | P2.5 | P4 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.86 | 2 | 2.5 | 4 |
| Pixel Density (Dot/㎡) | 640,000 | 406,406 | 288,906 | 250,000 | 160,000 | 62,500 |
| LED Type | SMD / GOB | SMD / GOB | SMD / GOB | SMD / GOB | SMD / GOB | SMD / GOB |
| Cabinet Size (mm) | 320 × 960 × 52 | 320 × 960 × 52 | 320 × 960 × 52 | 320 × 960 × 52 | 320 × 960 × 52 | 320 × 960 × 52 |
| Cabinet Resolution | 256 × 768 | 204 × 612 | 172 × 516 | 160 × 480 | 128 × 384 | 80 × 240 |
| Cabinet Material | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Brightness (cd/㎡) | 600 | 600 | 600 | 600 | 600 | 600 |
| Service Access | Front | Front | Front | Front | Front | Front |
| Protection Grade | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
