01
Lightweight 8:9 Cabinet
- 8kg lightweight cabinet design supports easier handling and faster rental setup.
- 8:9 cabinet ratio makes it easier to build 2K, 4K, and 8K display resolutions.

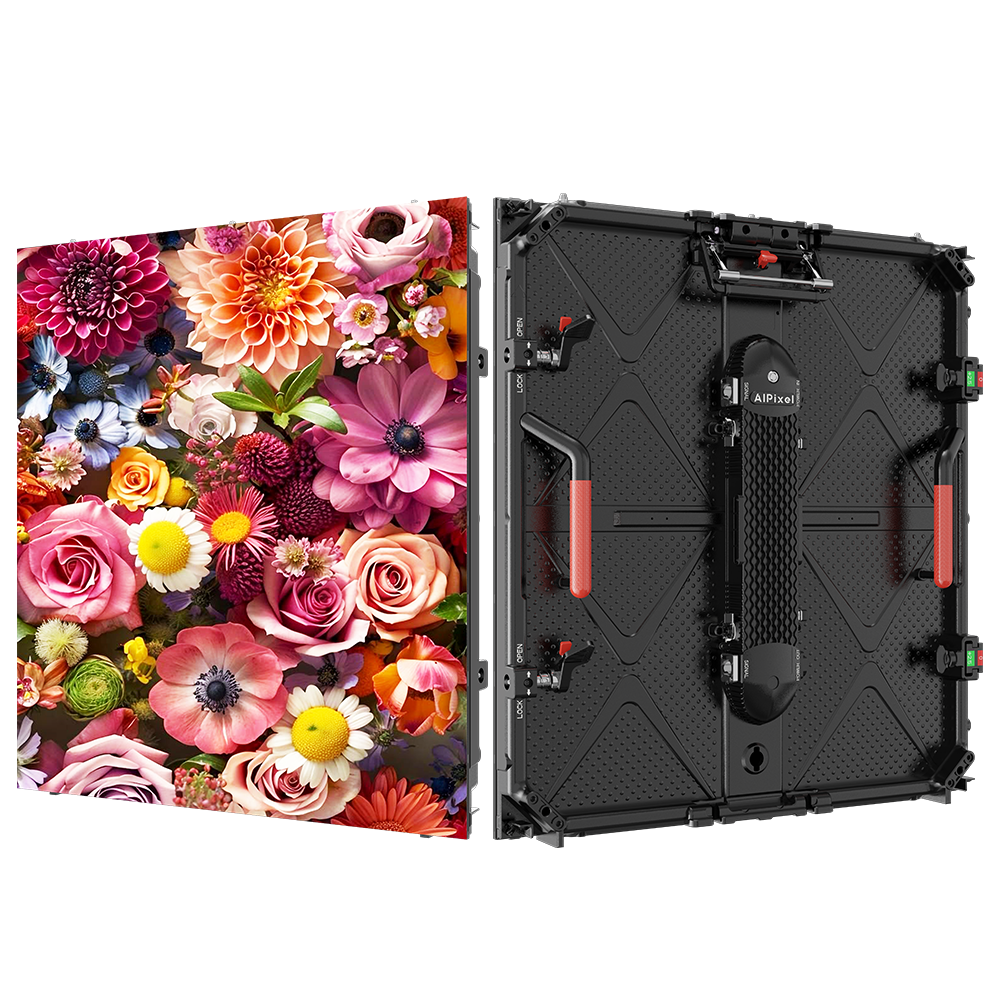

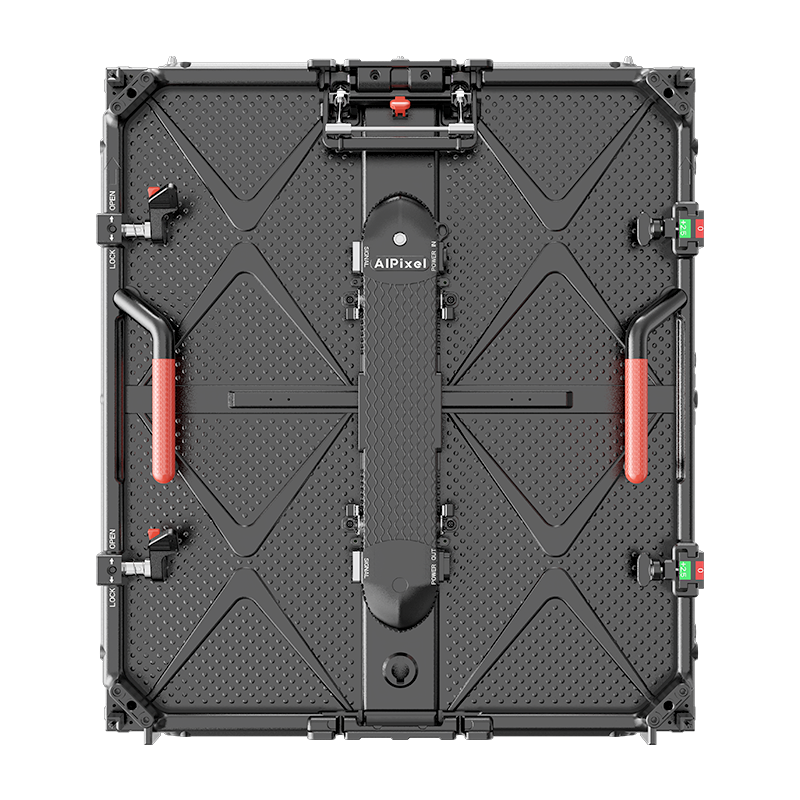

Arick COB (COB)
- Pixel Pitch : P0.93/1.25/1.56/1.87
- LED Technology : COB
- Cabinet Size : 600x675x84
- Module Size : 150x168.75
- Service Access : Front
Choose options
Arick COB (COB)
Sale price$0.00
Lightweight 8:9 Cabinet
Curve Shape
02
Curve Shape
- Patented angle lock supports convex and concave screen configurations.
- Flexible angle options enable curved, flat, and creative indoor rental displays.
03
Rapid Installation
- Two-step installation design makes cabinet assembly simple and efficient.
- Magnetic adsorption and central knife-switch lock support fast, secure, and precise operation.
04
Flexible Setup
- Supports lift, stacking, and hanging installation methods for different event setups.
- Compatible hanging and lifting beam design supports large-scale rental screen installation.
05
Independent Power Box
- Independent power box design allows fast replacement and easier maintenance.
- Cabinet base with anti-collision design and protective corners helps reduce impact damage.
06
Patented Ground Beam
- Patented ground beam design helps simplify first-row cabinet leveling.
- Designed for faster, more stable ground-supported rental screen setup.
EXPLORE CASE STUDIES
See How Our LED Displays Are Used Worldwide
Browse our LED display case studies to see how AiPixel solutions are used in events, stages, commercial spaces, sports venues, and creative installations worldwide.
CERTIFICATIONS
SOLUTIONS
TECHNICAL SPECIFICATIONS
| Parameter | P0.93 | P1.25 | P1.56 | P1.87 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.87 |
| Pixel Density (Dot/㎡) | 1,137,777 | 640,000 | 409,600 | 284,444 |
| LED Type | COB | COB | COB | COB |
| Cabinet Size (mm) | 600 × 675 × 84 | 600 × 675 × 84 | 600 × 675 × 84 | 600 × 675 × 84 |
| Cabinet Resolution | 640 × 720 | 480 × 540 | 384 × 432 | 320 × 360 |
| Cabinet Material | Die-cast Magnesium Alloy | Die-cast Magnesium Alloy | Die-cast Magnesium Alloy | Die-cast Magnesium Alloy |
| Brightness (cd/㎡) | 600 / 1000 | 600 / 1000 | 600 / 1000 | 600 / 1000 |
| Service Access | Front | Front | Front | Front |
| Protection Grade | IP40 | IP40 | IP40 | IP40 |
