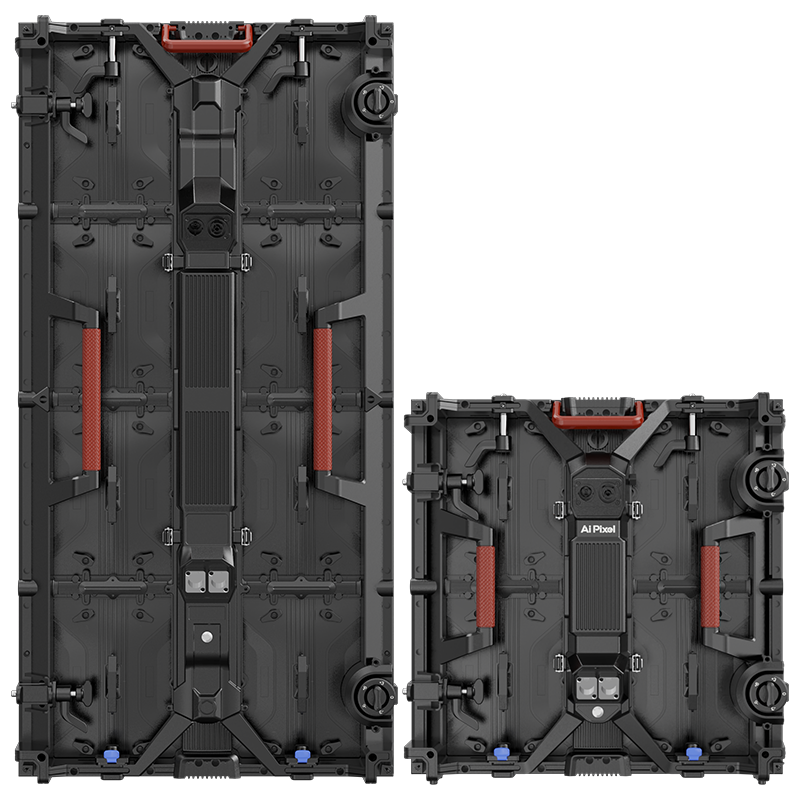

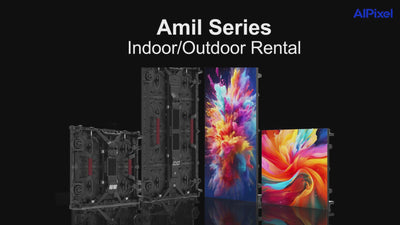

Amil (Outdoor SMD)

Pixel Pitch : P2.6/2.9/3.9
LED Technology : SMD

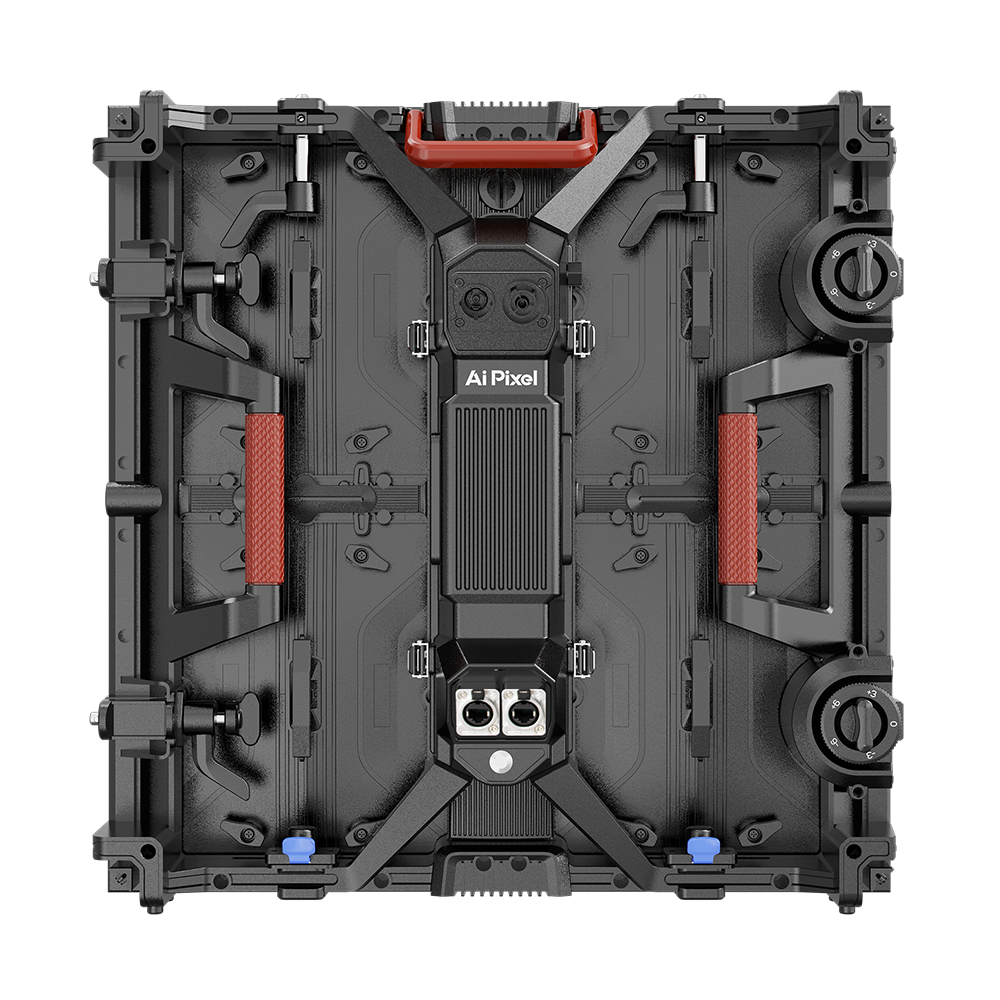

Cabinet Size : 500x500/1000x92
Module Size : 250x250
Service Access : Front/Rear

Pitch:

Outdoor P2.6 Outdoor P2.9 Outdoor P3.9

Variant

Get a Quote

Download PDF

ADD TO COMPARE

Thin & Lightweight Structure

Fast Mix-Match Installation

01

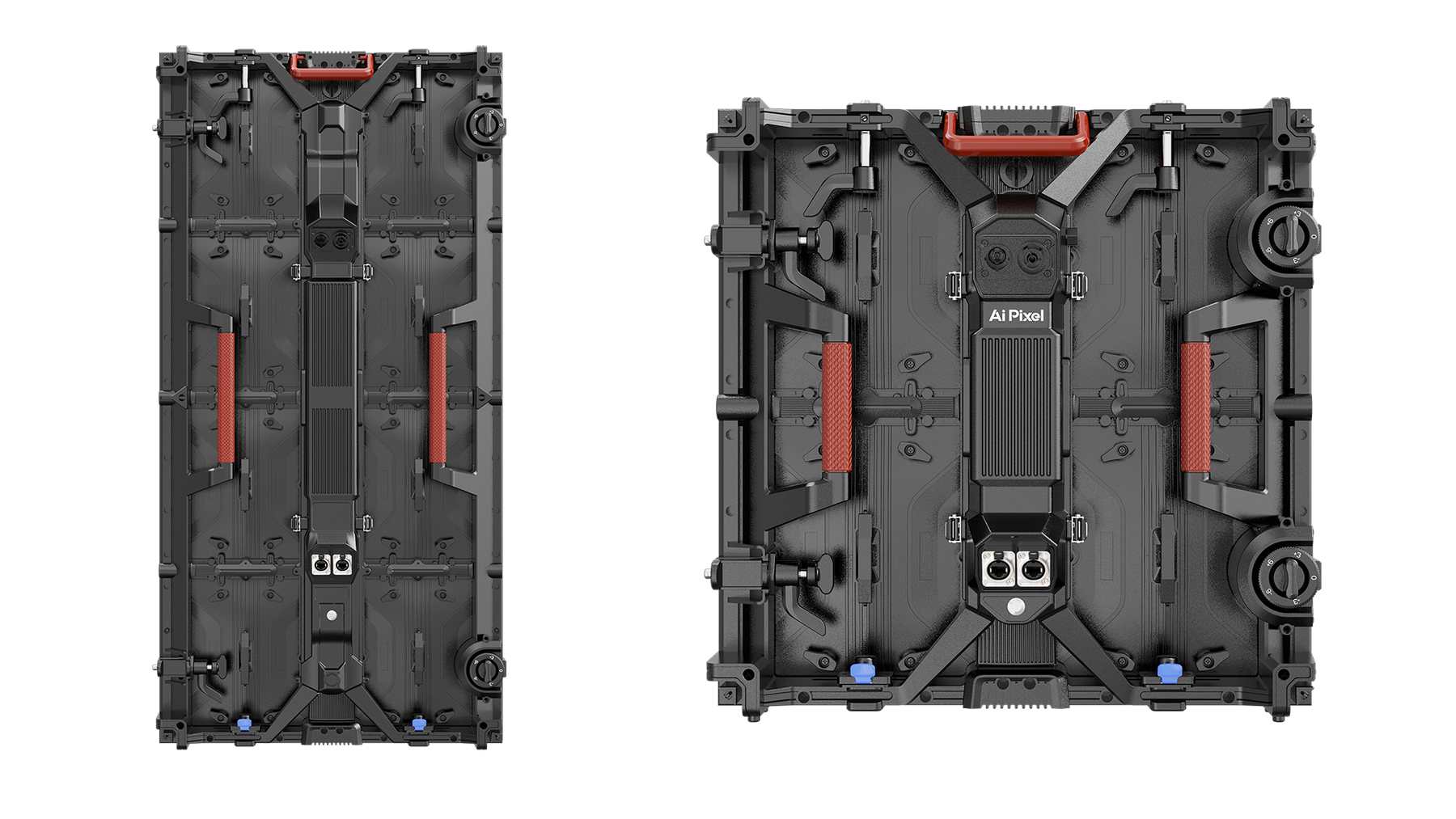

Thin & Lightweight Structure

Die-cast magnesium alloy cabinet reduces overall weight for easier handling.
Slim and durable cabinet structure is suitable for frequent rental installation and dismantling.

02

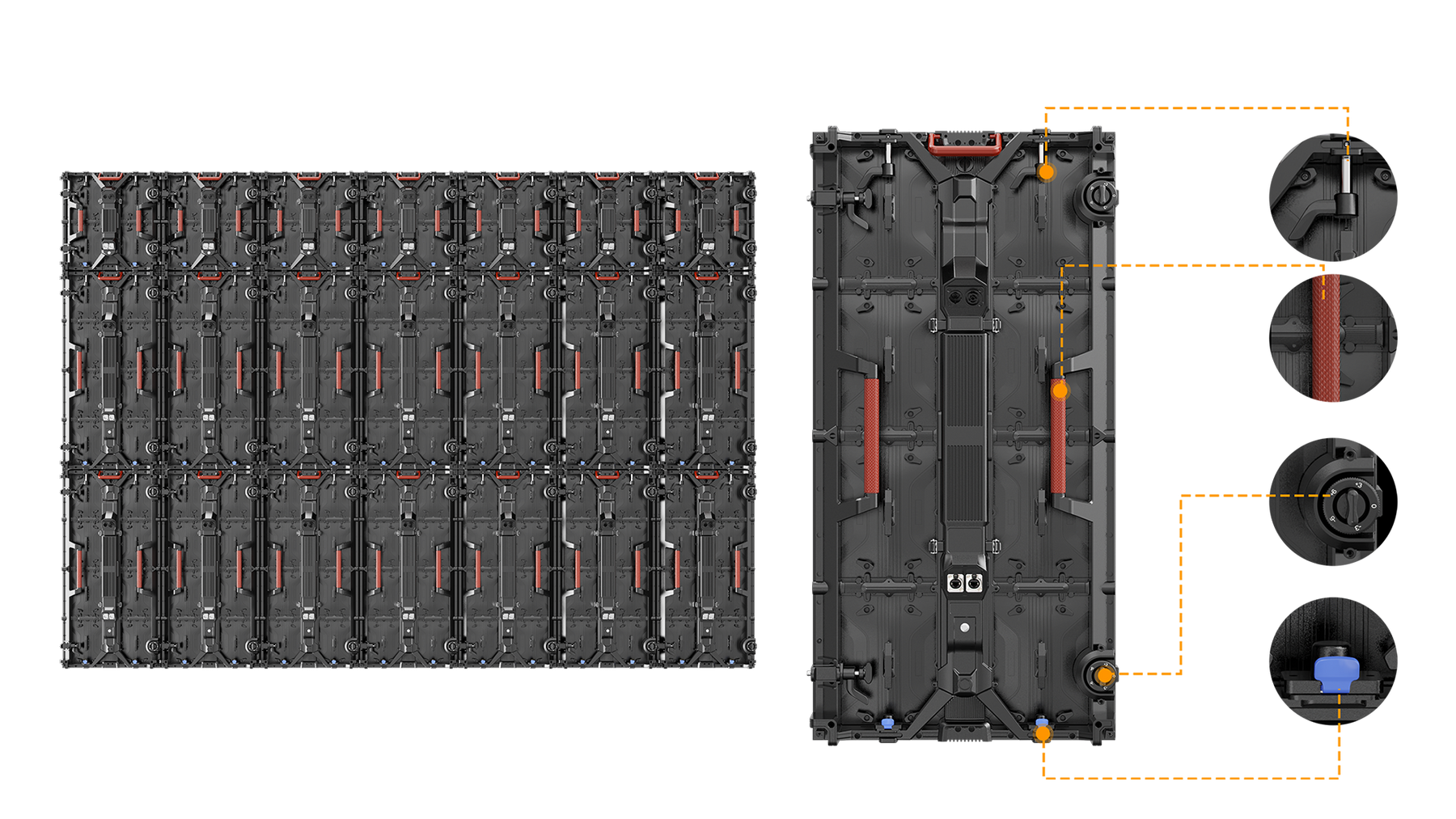

Fast Mix-Match Installation

Large and small cabinets can be mixed for flexible indoor and outdoor screen layouts.
Top lock, arc lock, bottom lock, and handle design help speed up installation.

03

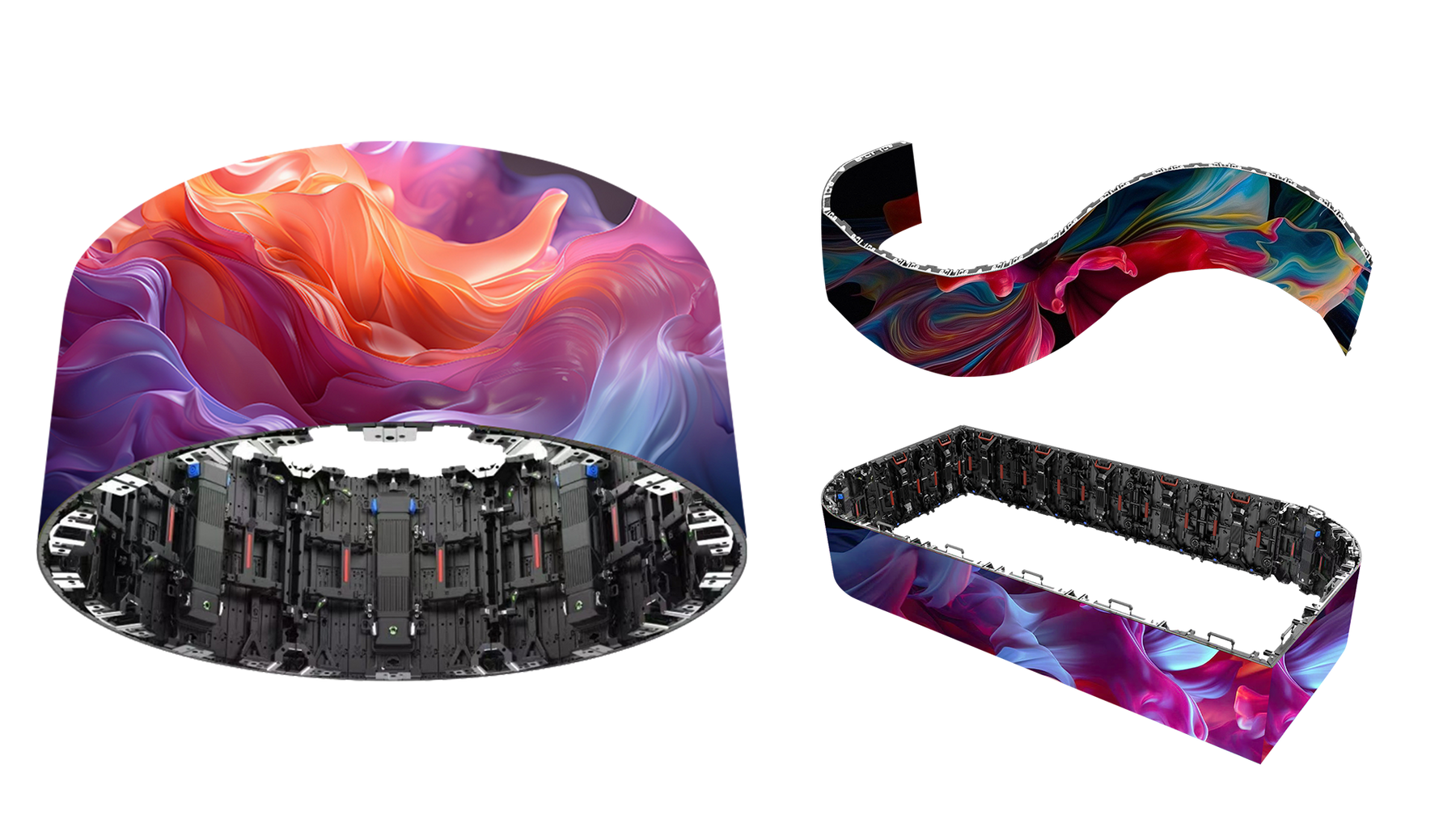

Creative Splicing

45° cutting angle supports 90° corner splicing for creative display structures.
Flexible curve solution enables circular, curved, and flat-panel combination setups.

04

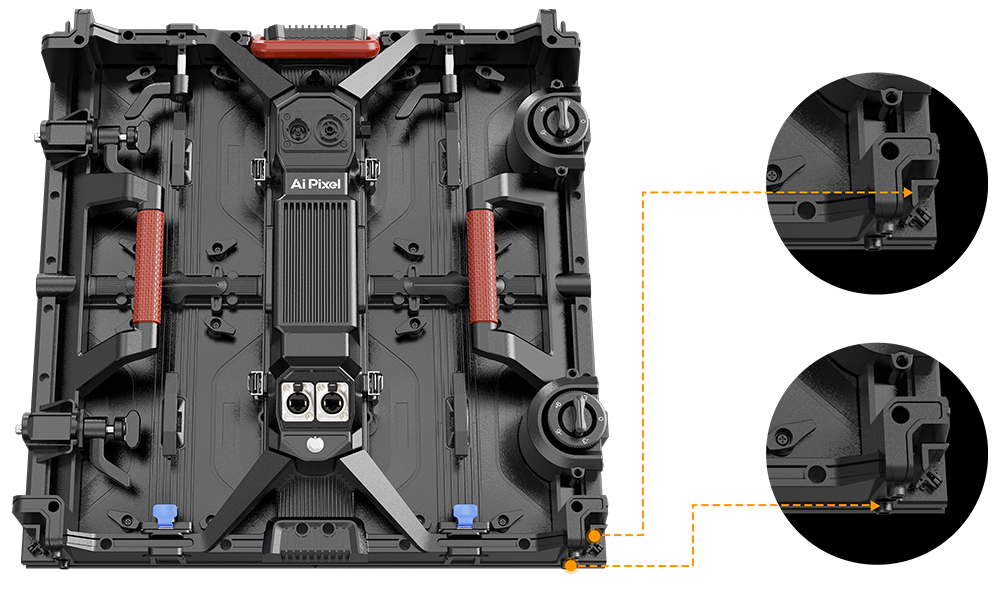

Strong Protection Design

Semi-automatic corner protection helps reduce damage during transport and installation.
Anti-collision lamp protection improves durability for high-frequency rental use.

05

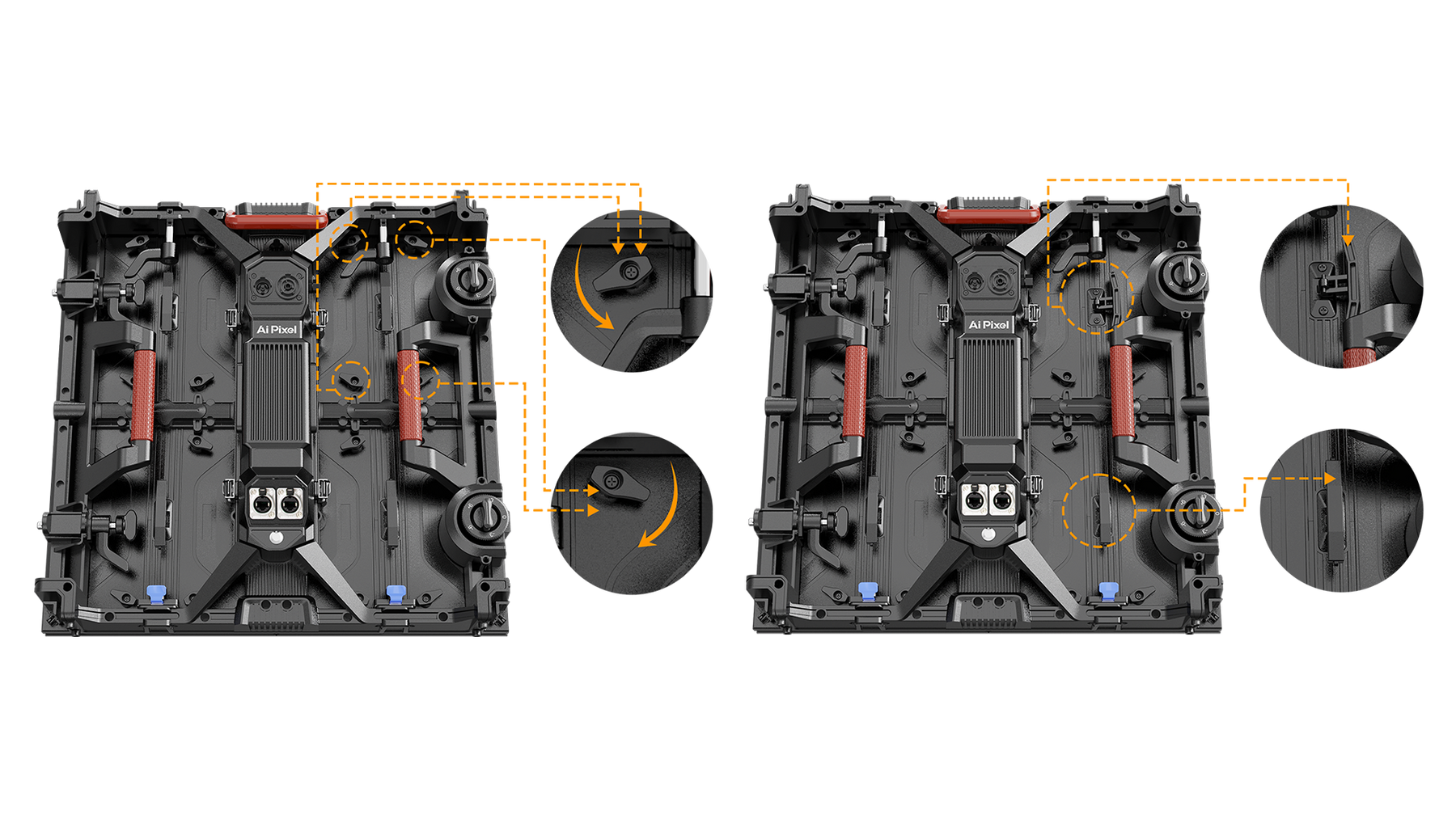

Fast Maintenance

Front-access cable design makes signal and power cable maintenance easier.
Simple operating structure helps reduce service time during events and installations.

06

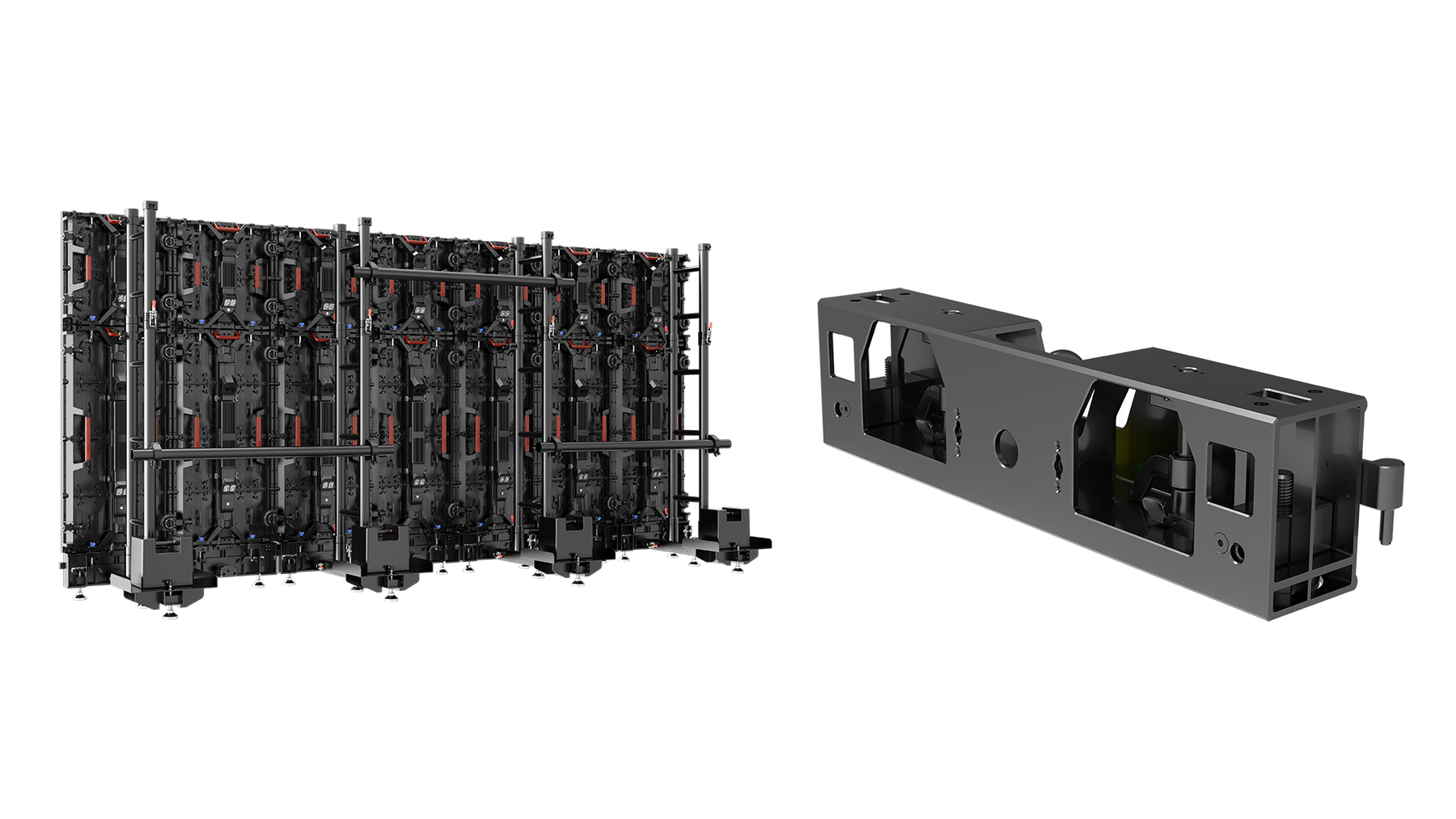

2-in-1 Hanging & Stacking

Universal hanging and ground beams reduce spare part requirements.
Supports both hanging and stacking installations up to 10 meters.

EXPLORE CASE STUDIES

See How Our LED Displays Are Used Worldwide

Browse our LED display case studies to see how AiPixel solutions are used in events, stages, commercial spaces, sports venues, and creative installations worldwide.

VIEW ALL CASES

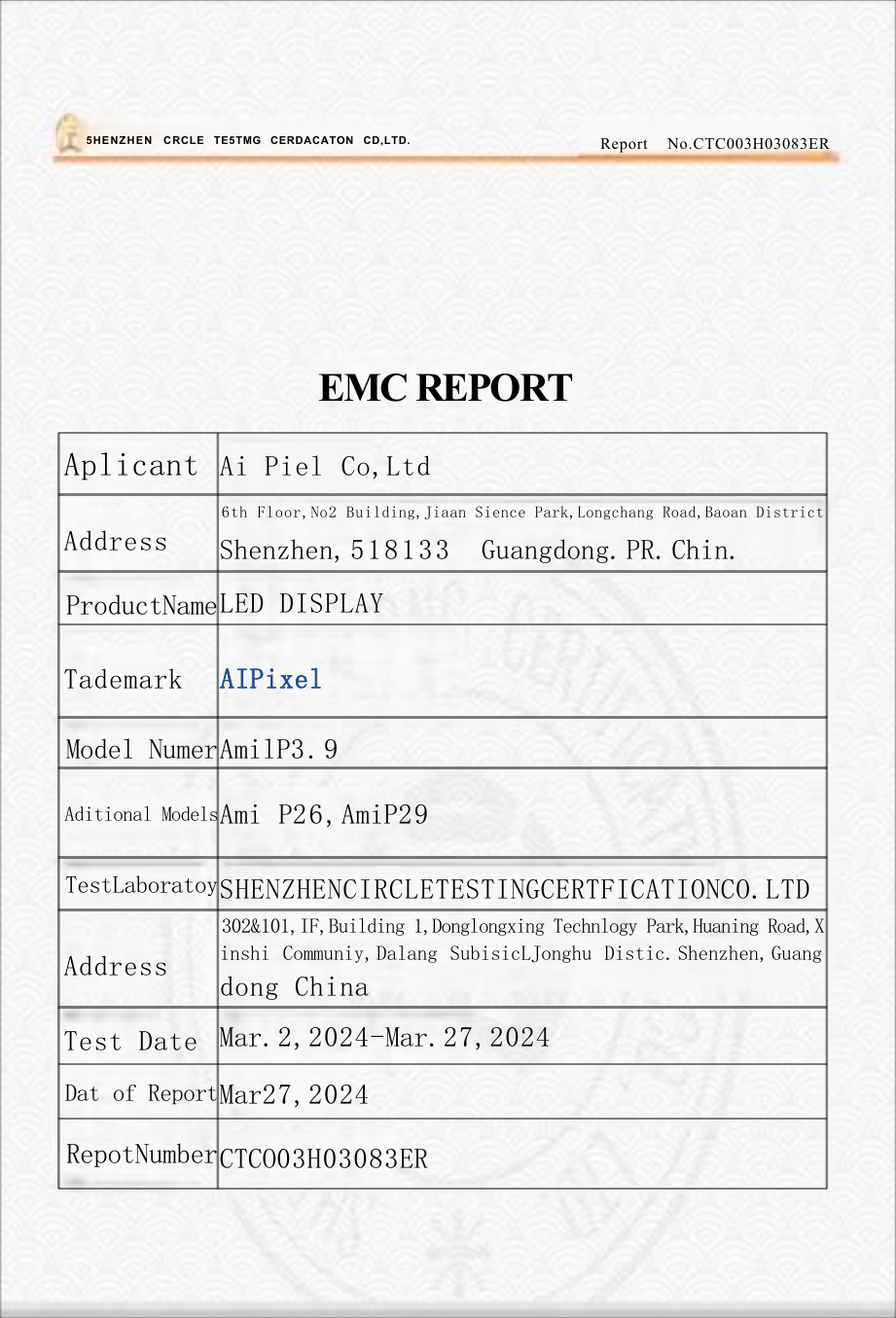

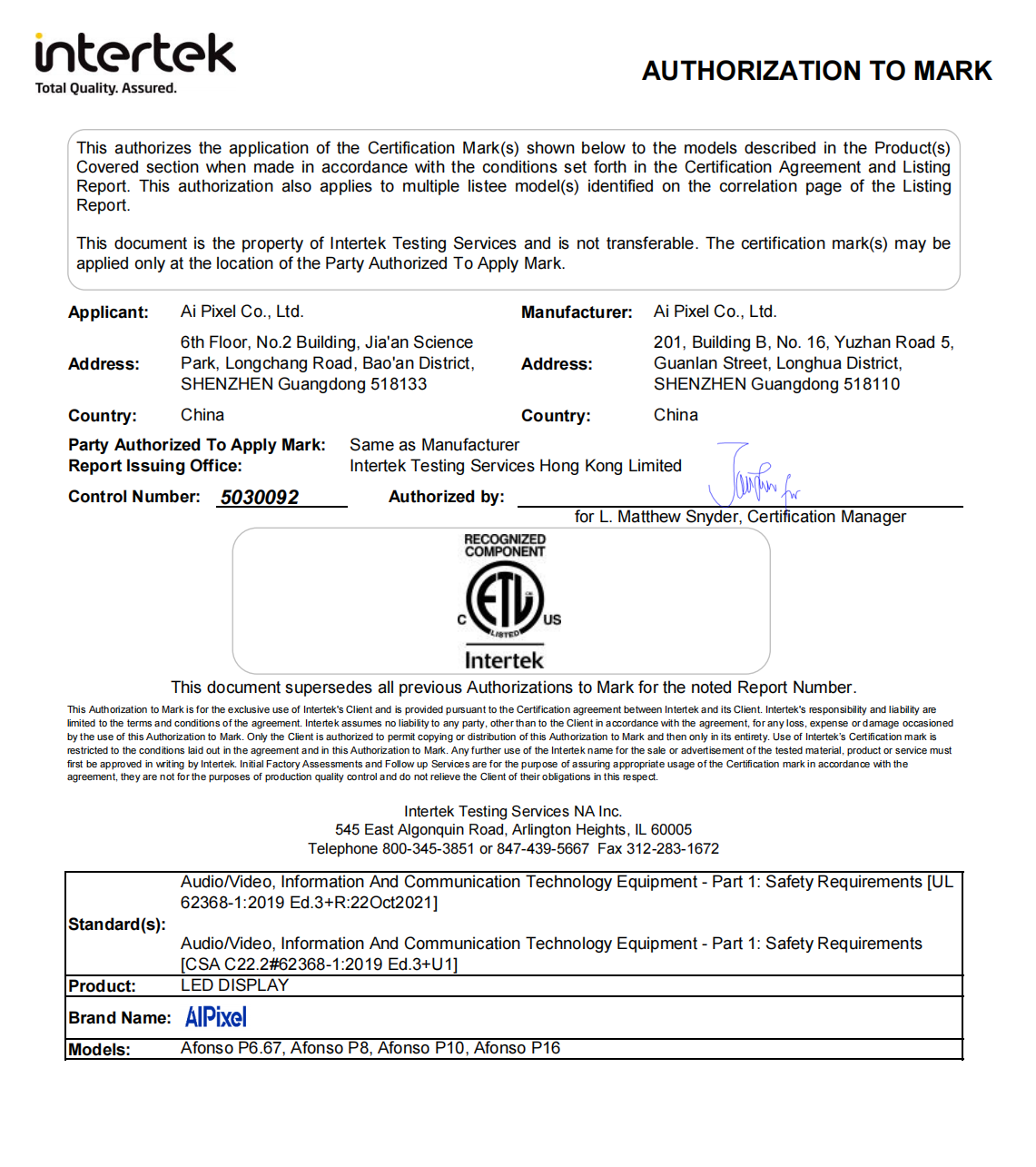

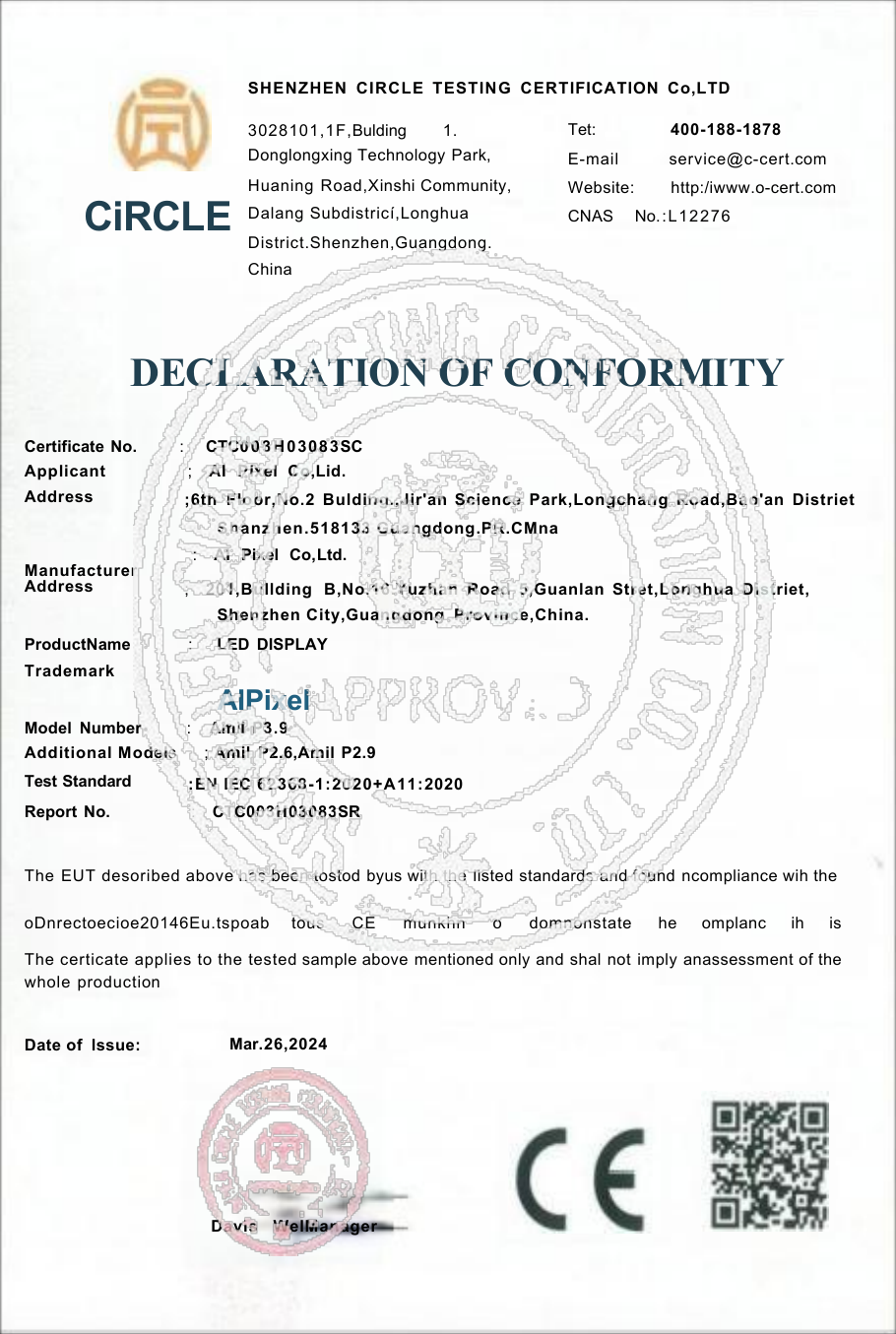

CERTIFICATIONS

SOLUTIONS

DIGITAL OUT-OF-HOME ADVERTISING

RENTAL & STAGING

COMMERCIAL RETAIL

CREATIVE DISPLAY & SPECIAL APPLICATIONS

ENTERTAINMENT & HOSPITALITY

TECHNICAL SPECIFICATIONS

Parameter	P2.6	P2.9	P3.9
Pixel Pitch (mm)	2.6	2.9	3.9
Pixel Density (Dot/㎡)	147,456	112,896	65,536
LED Type	SMD	SMD	SMD

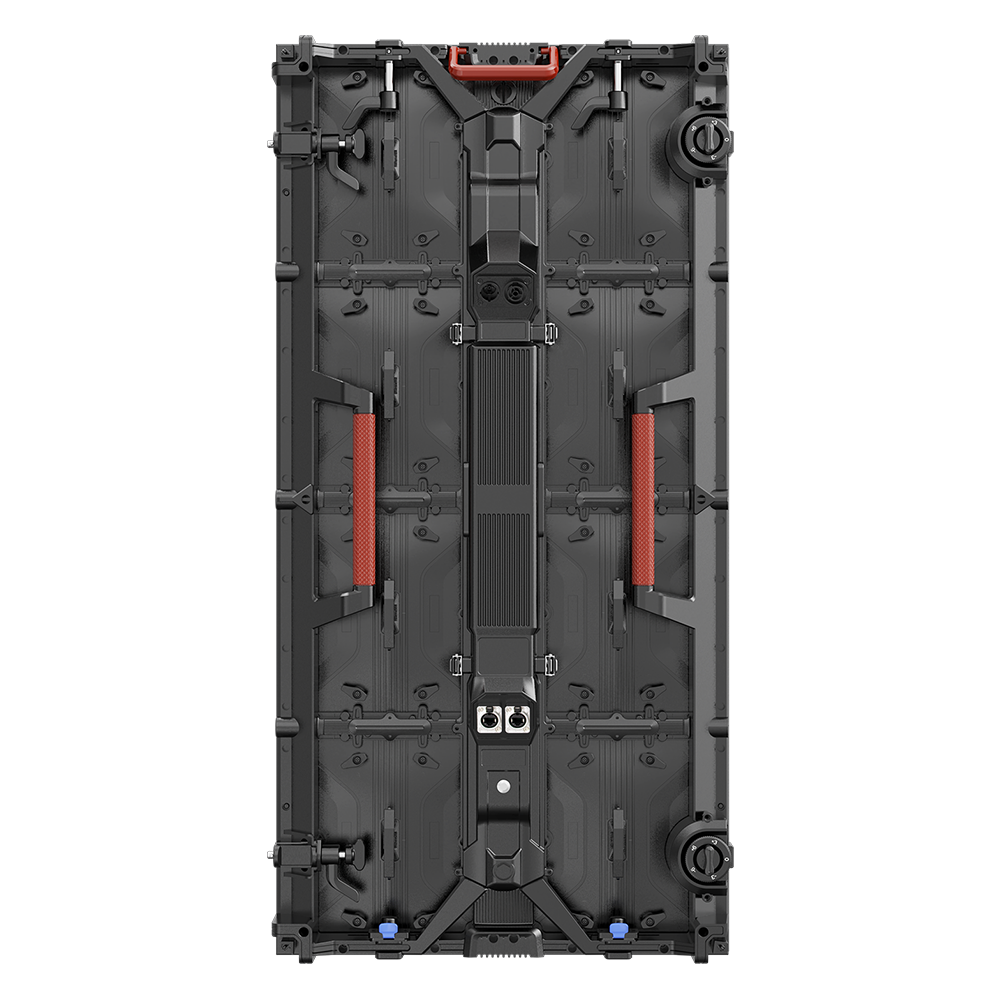

Cabinet Size (mm)	500 × 500 × 92 / 500 × 1000 × 92	500 × 500 × 92 / 500 × 1000 × 92	500 × 500 × 92 / 500 × 1000 × 92
Cabinet Resolution	192 × 192 / 192 × 384	168 × 168 / 168 × 336	128 × 128 / 128 × 256
Cabinet Material	Die-cast Magnesium Alloy	Die-cast Magnesium Alloy	Die-cast Magnesium Alloy
Brightness (cd/㎡)	4000	4500-5000	4500-6000
Service Access	Front / Rear	Front / Rear	Front / Rear
Protection Grade	IP65	IP65	IP65
