01

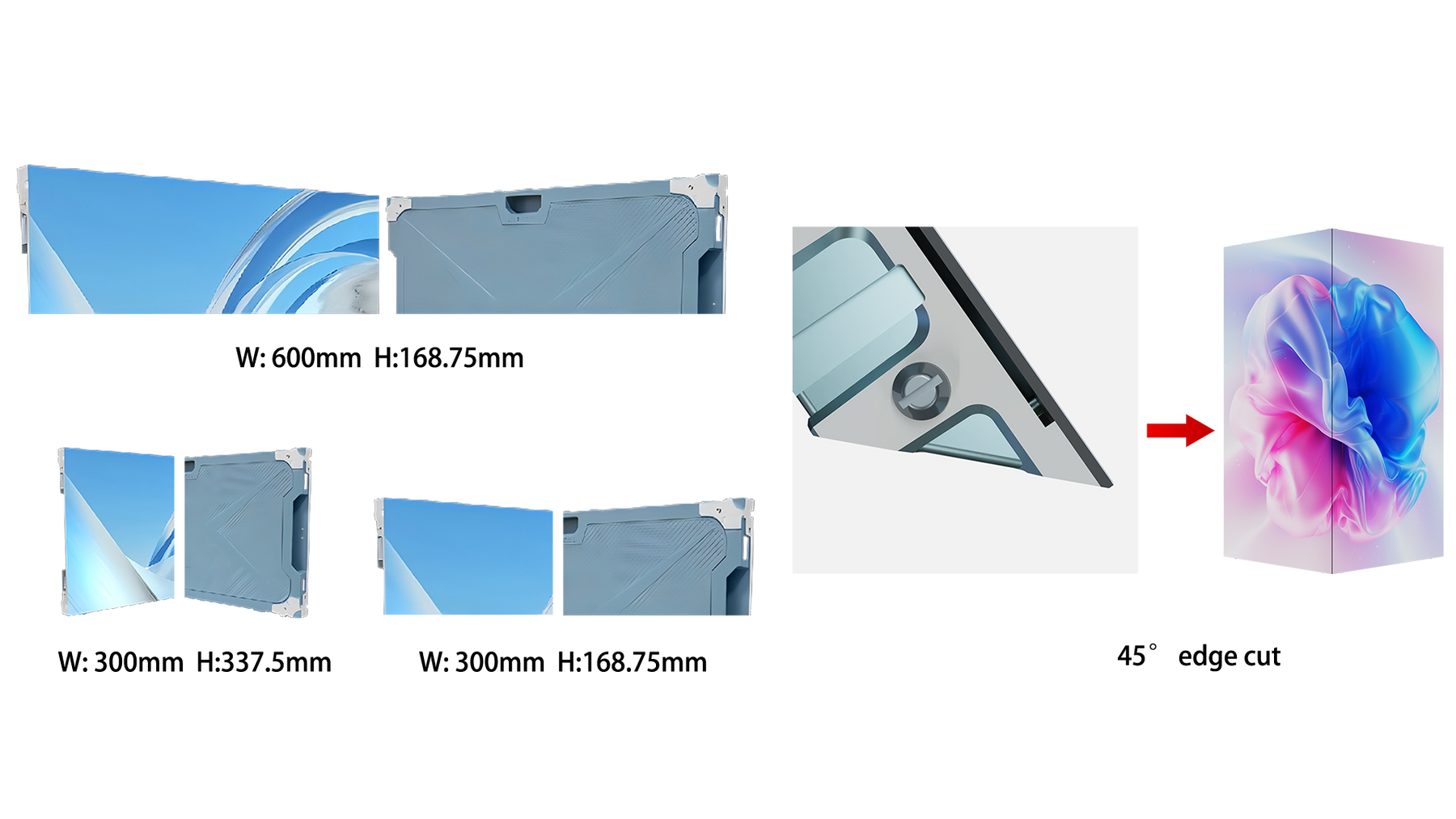

Flexible Cabinet Design
- Multiple cabinet sizes support flexible screen configurations.
- Vertical, cross, and 45° edge-cut options enable corner, cube, and custom structures.

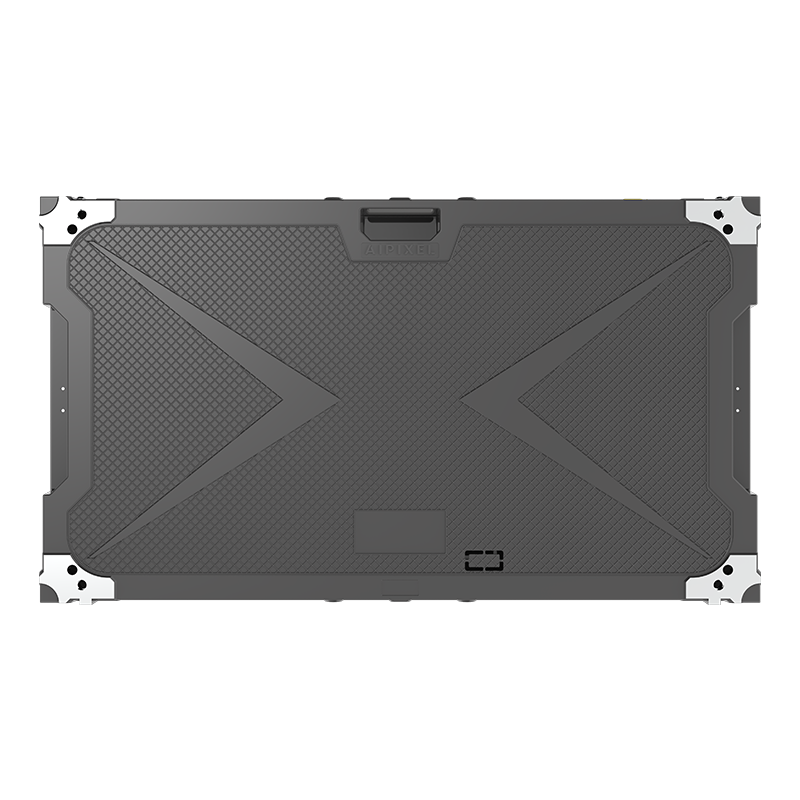

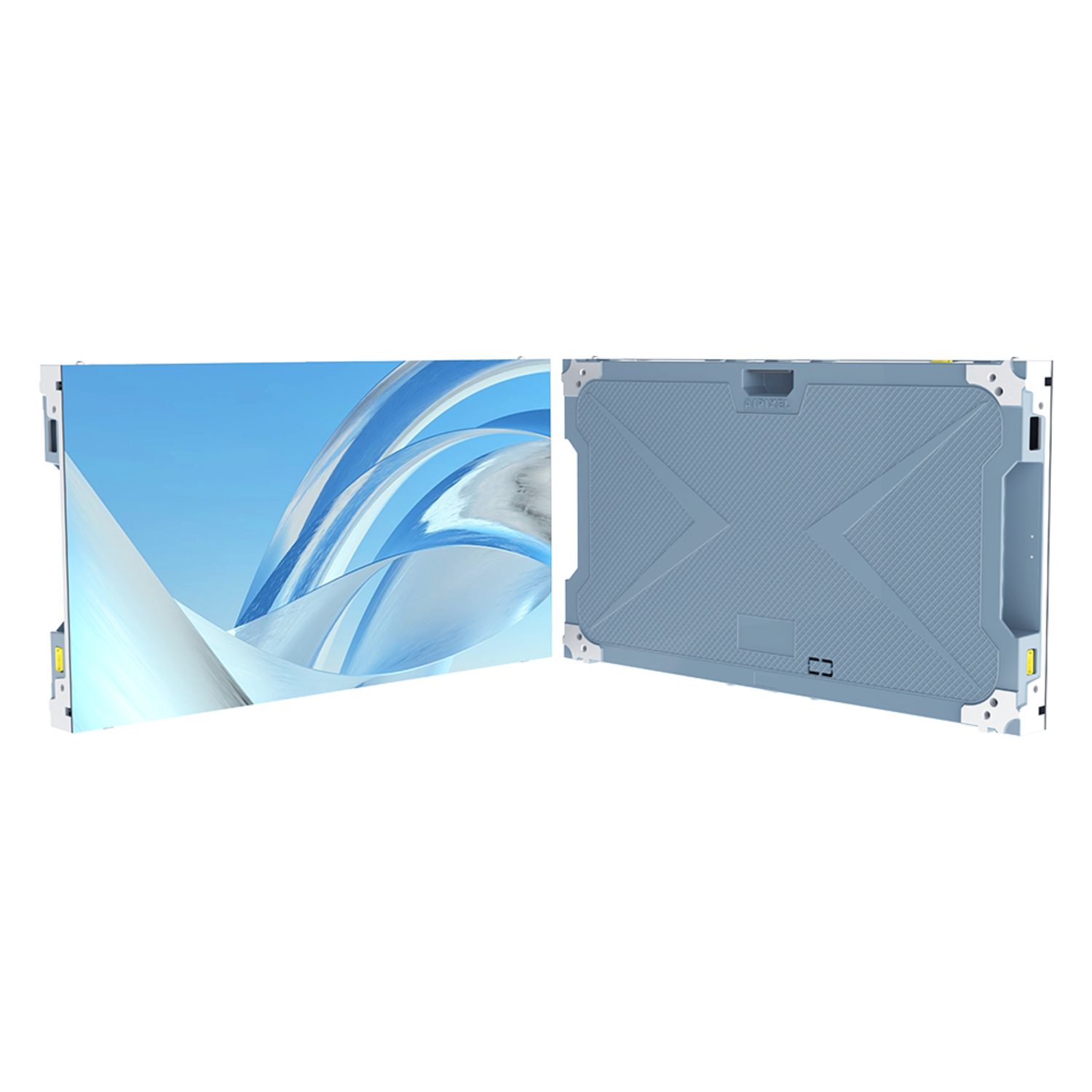

Ariel (MIP)
- Pixel Pitch : P1.25/1.56/1.87
- LED Technology : MIP
- Cabinet Size : 600x337.5x44.5
- Module Size : 150x168.75
- Service Access : Front
Choose options
Ariel (MIP)
Sale price$0.00
Flexible Cabinet Design
Seamless Precision
02

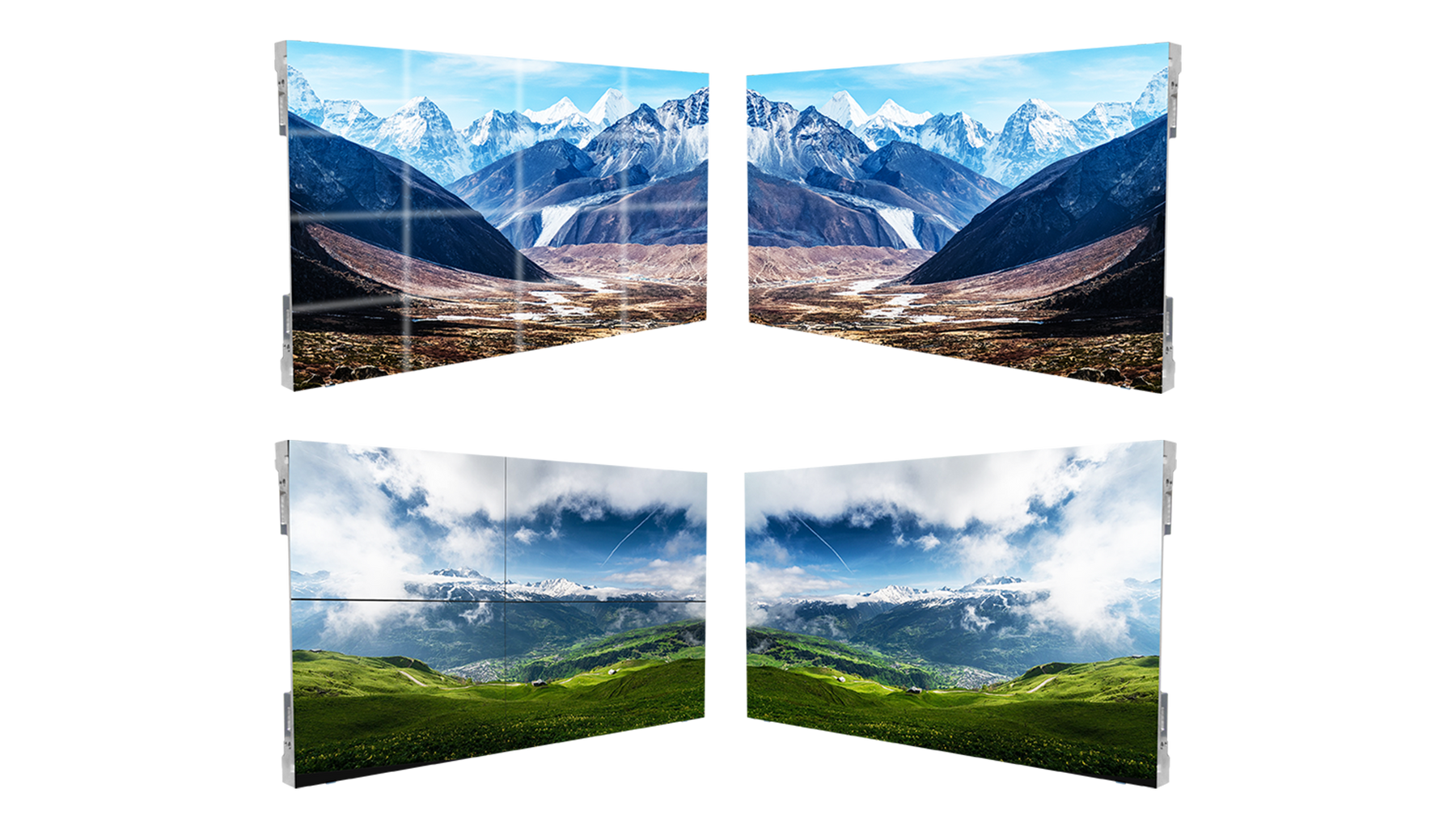

Seamless Precision
- Cabinet assembly accuracy reaches less than 0.05 mm.
- High-precision alignment helps reduce visible gaps and maintain a flat display surface.
03

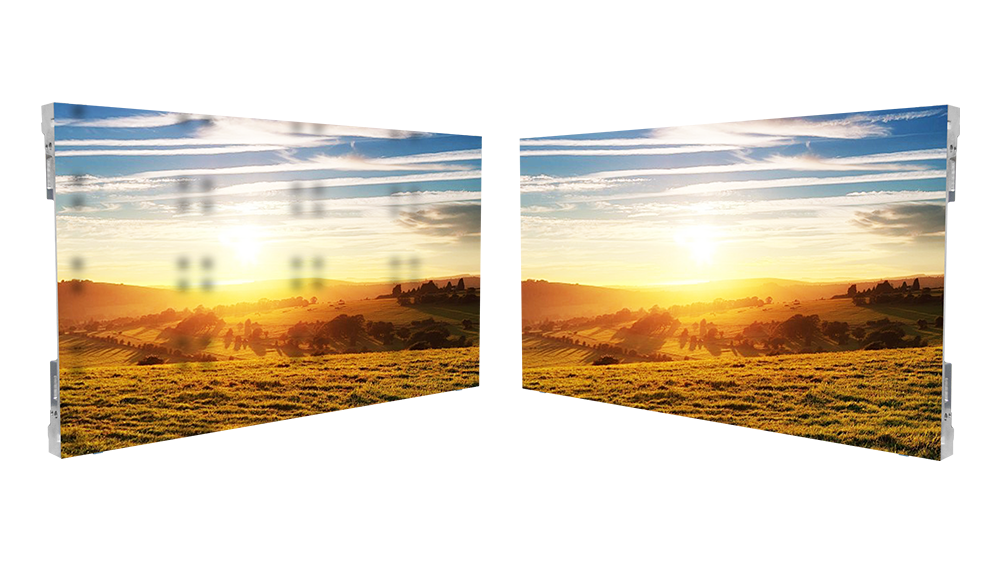

Stable Display Performance
- Patented magnet black technology helps reduce dark spots.
- Uniform heat dissipation supports stable performance during long-term operation.
04
Versatile Installation
- Supports 8 installation scenarios, including ceiling, hanging, wall-mounted, stacking, cube, and double-sided setups.
- Adapts to commercial, retail, corporate, exhibition, and creative display spaces.
CASE STUDY

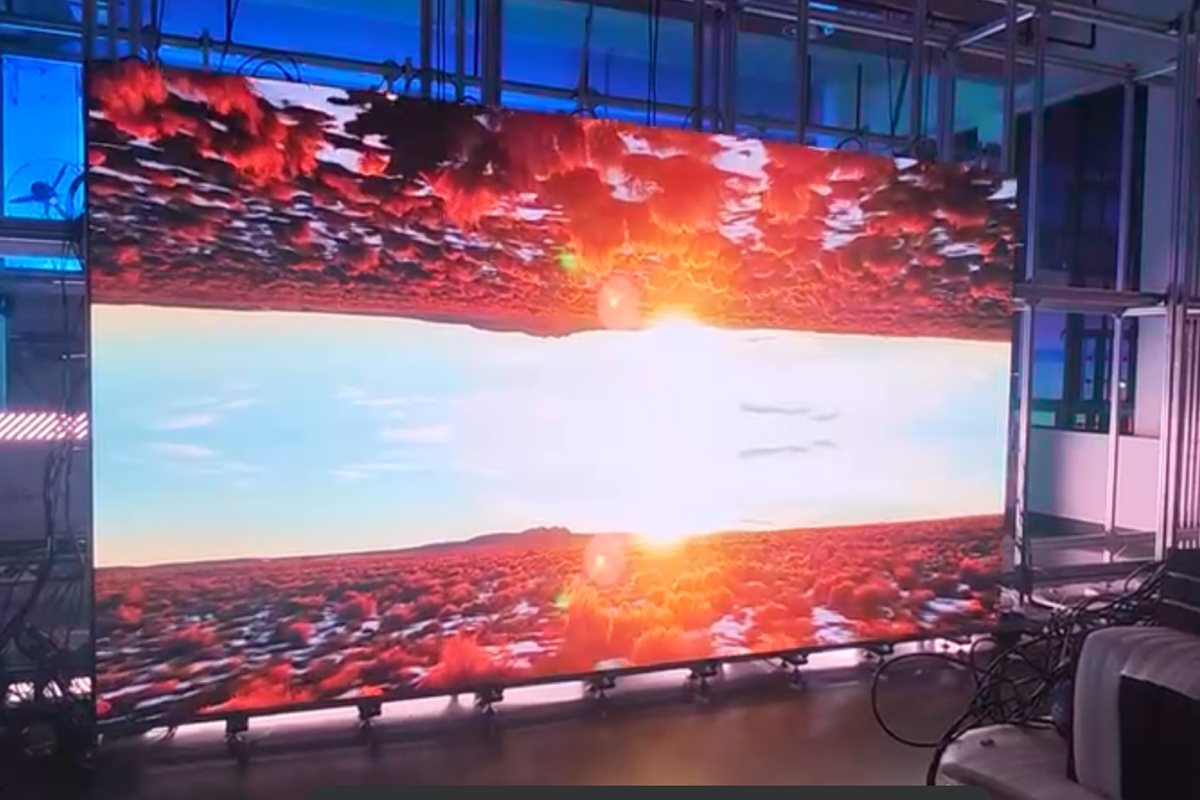

USA 5K UHD Fixed LED Display Solution
AiPixel developed a 7 × 7 fixed Ariel P0.9 LED display system in the United States, delivering 5K UHD resolution, high brightness, and ultra-fine seamless splicing for close-viewing applications.

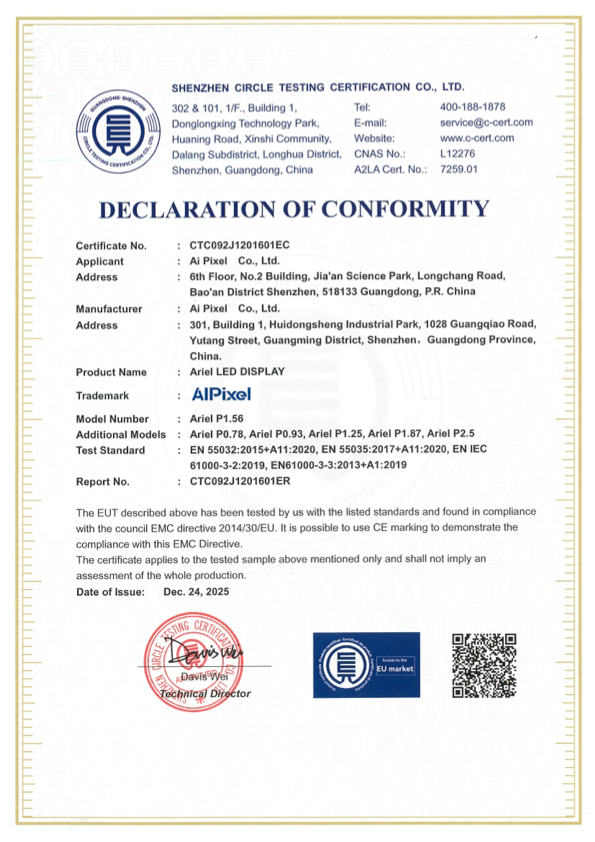

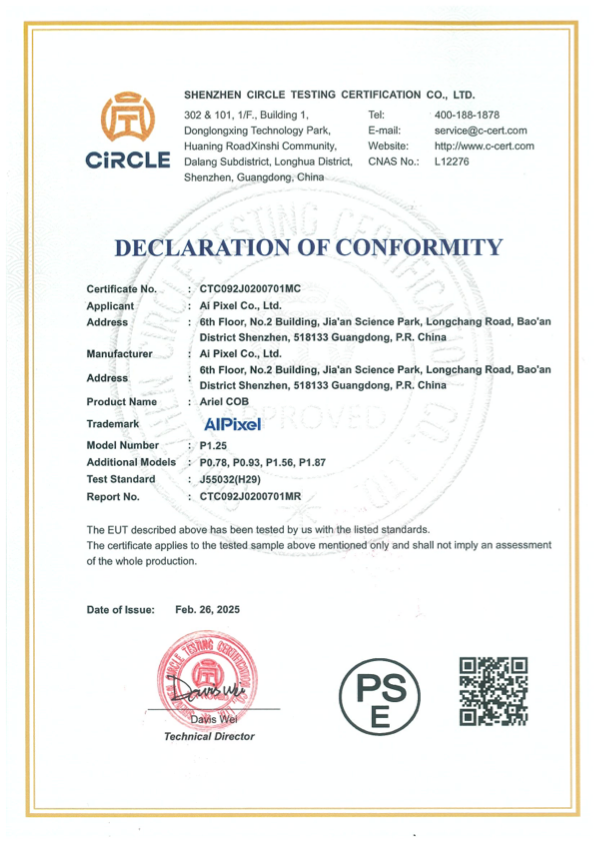

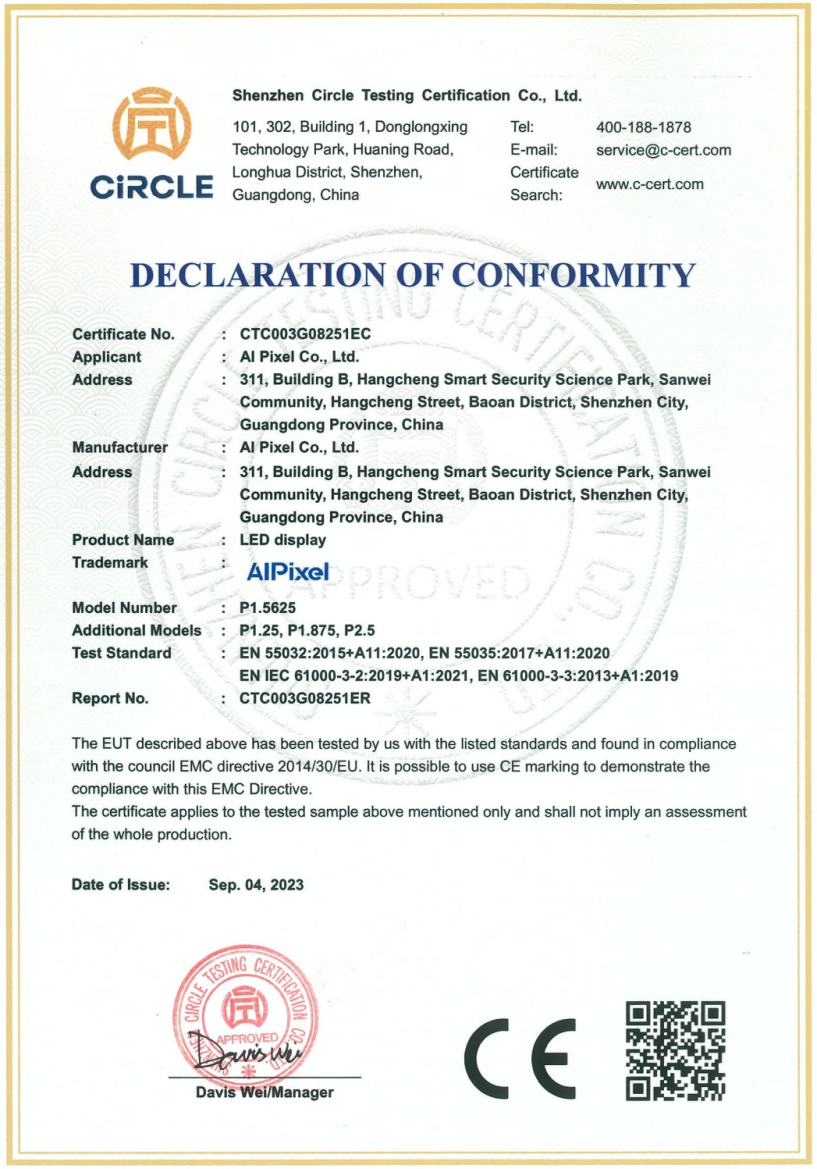

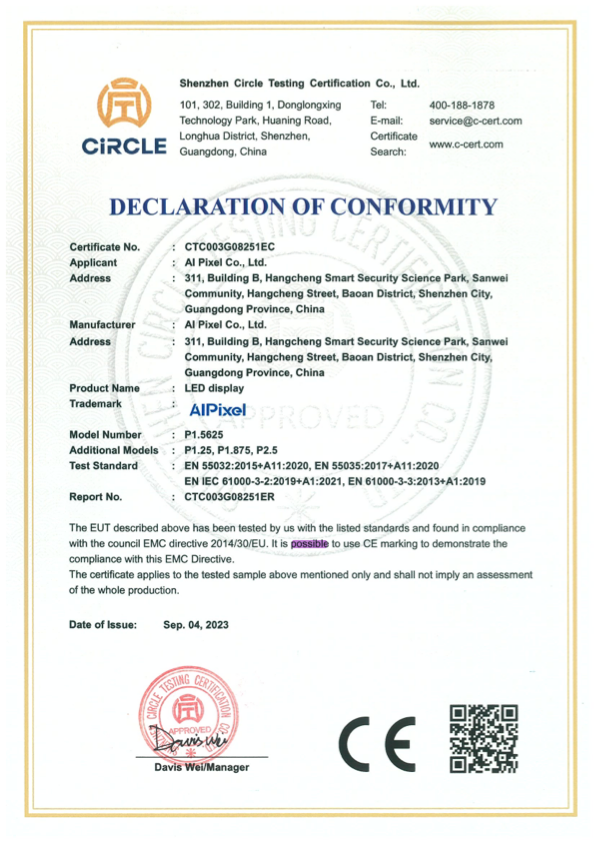

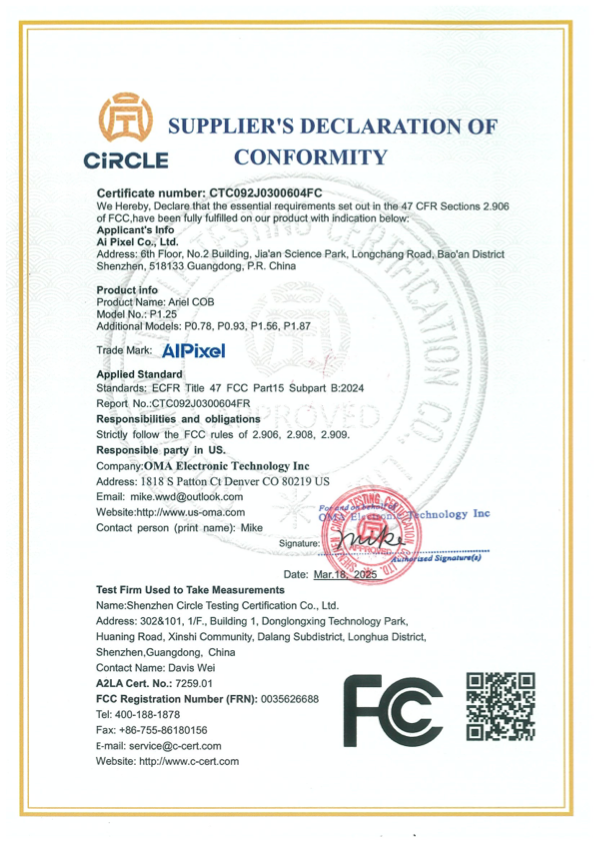

CERTIFICATIONS
SOLUTIONS
TECHNICAL SPECIFICATIONS
| Parameter | P1.25 | P1.56 | P1.87 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.87 |
| Pixel Density (Dot/㎡) | 640,000 | 409,600 | 284,444 |
| LED Type | MIP | MIP | MIP |
| Cabinet Size (mm) | 600 × 337.5 × 44.5 | 600 × 337.5 × 44.5 | 600 × 337.5 × 44.5 |
| Cabinet Resolution | 480 × 270 | 384 × 216 | 320 × 180 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Brightness (cd/㎡) | 3000 | 3000 | 3000 |
| Service Access | Front | Front | Front |
| Protection Grade | IP40 | IP40 | IP40 |
