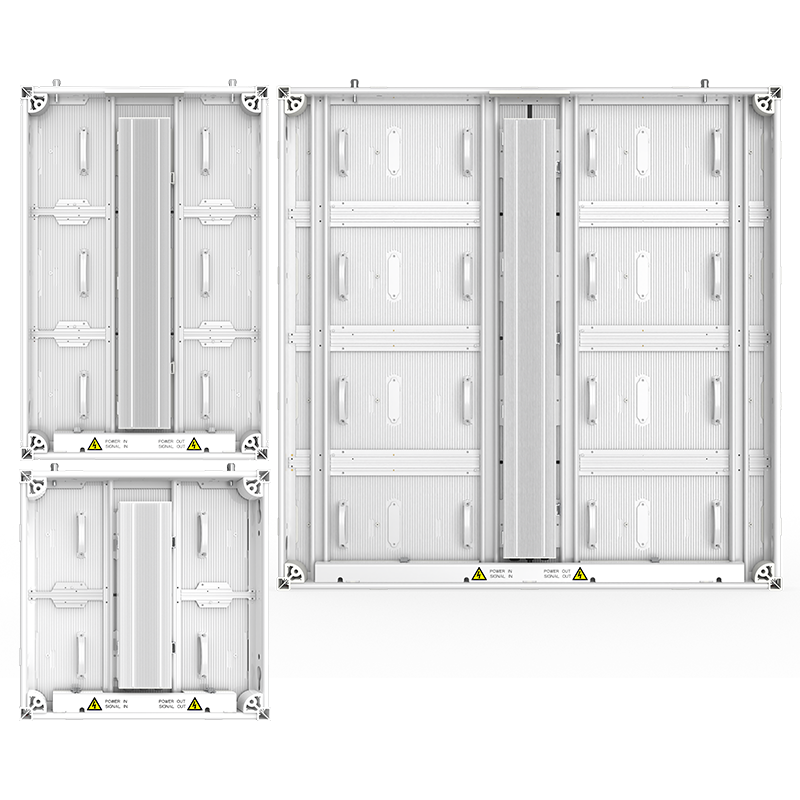

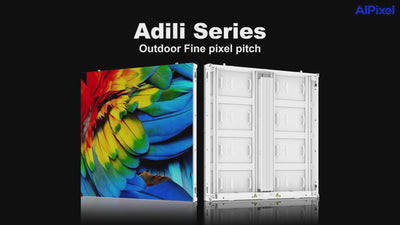

Adili (MIP)

Pixel Pitch : P1.5/1.9/2.6
LED Technology : MIP
Cabinet Size : 500x500/750/1000x82
Module Size : 500x250
Service Access : Front/Rear

Pitch:

MIP P1.5 MIP P1.9 MIP P2.6

Variant

Get a Quote

Download PDF

ADD TO COMPARE

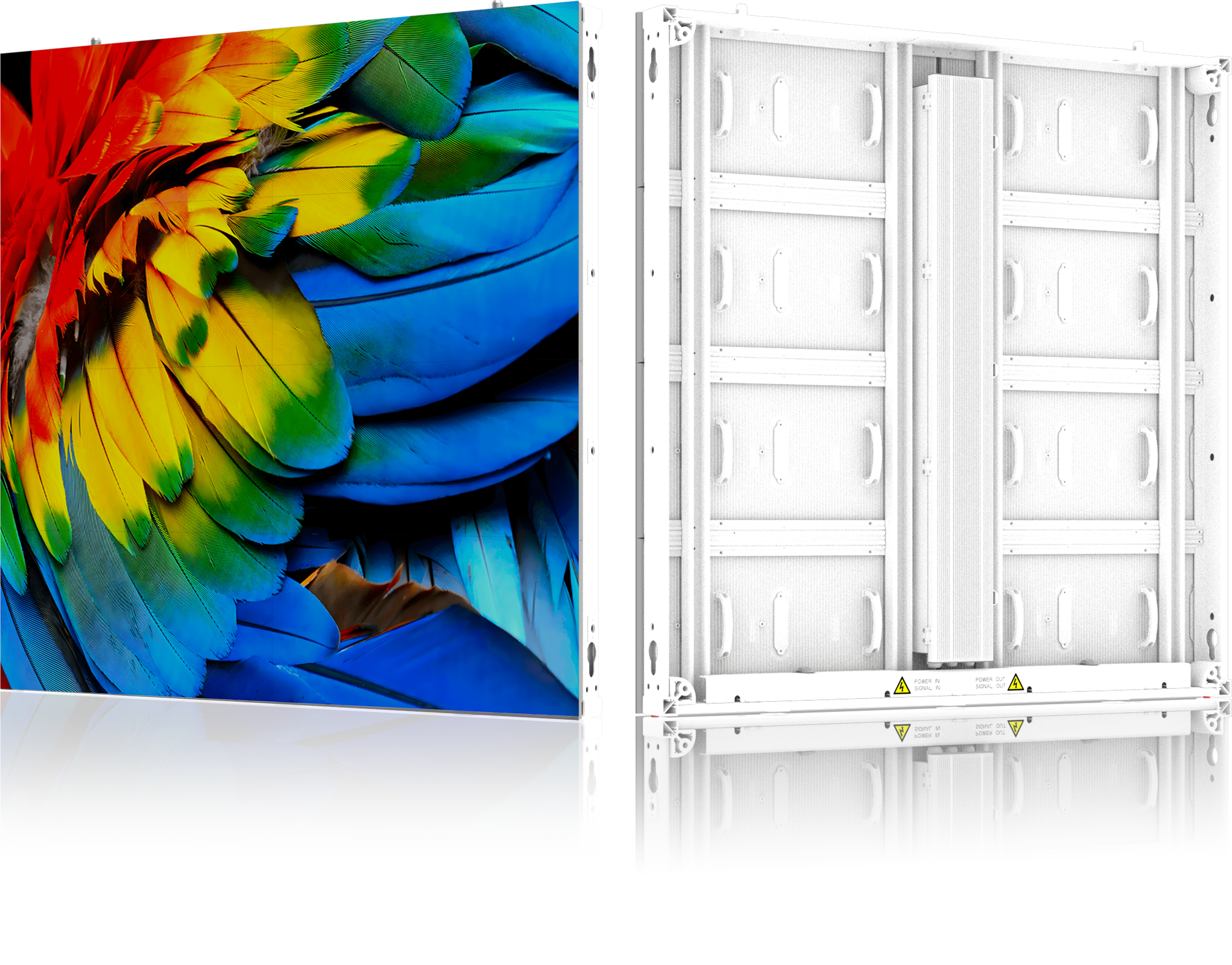

Fine-Pitch Cabinet Flexibility

Strong Weather Resistance

01

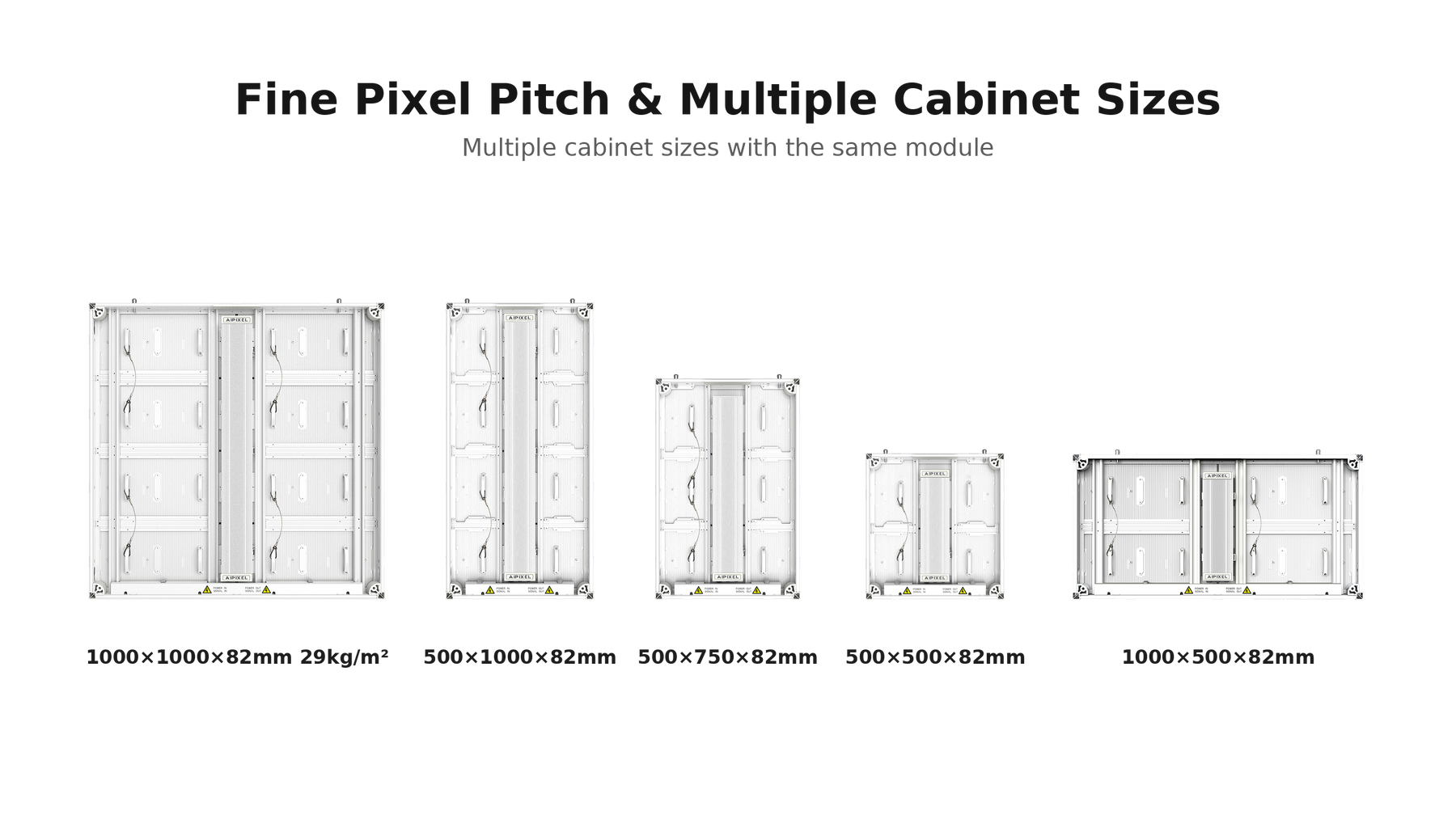

Fine-Pitch Cabinet Flexibility

Multiple cabinet sizes support flexible outdoor screen configurations.
Seamless splicing and hidden wiring create a clean structure for multi-size and curved display applications.

02

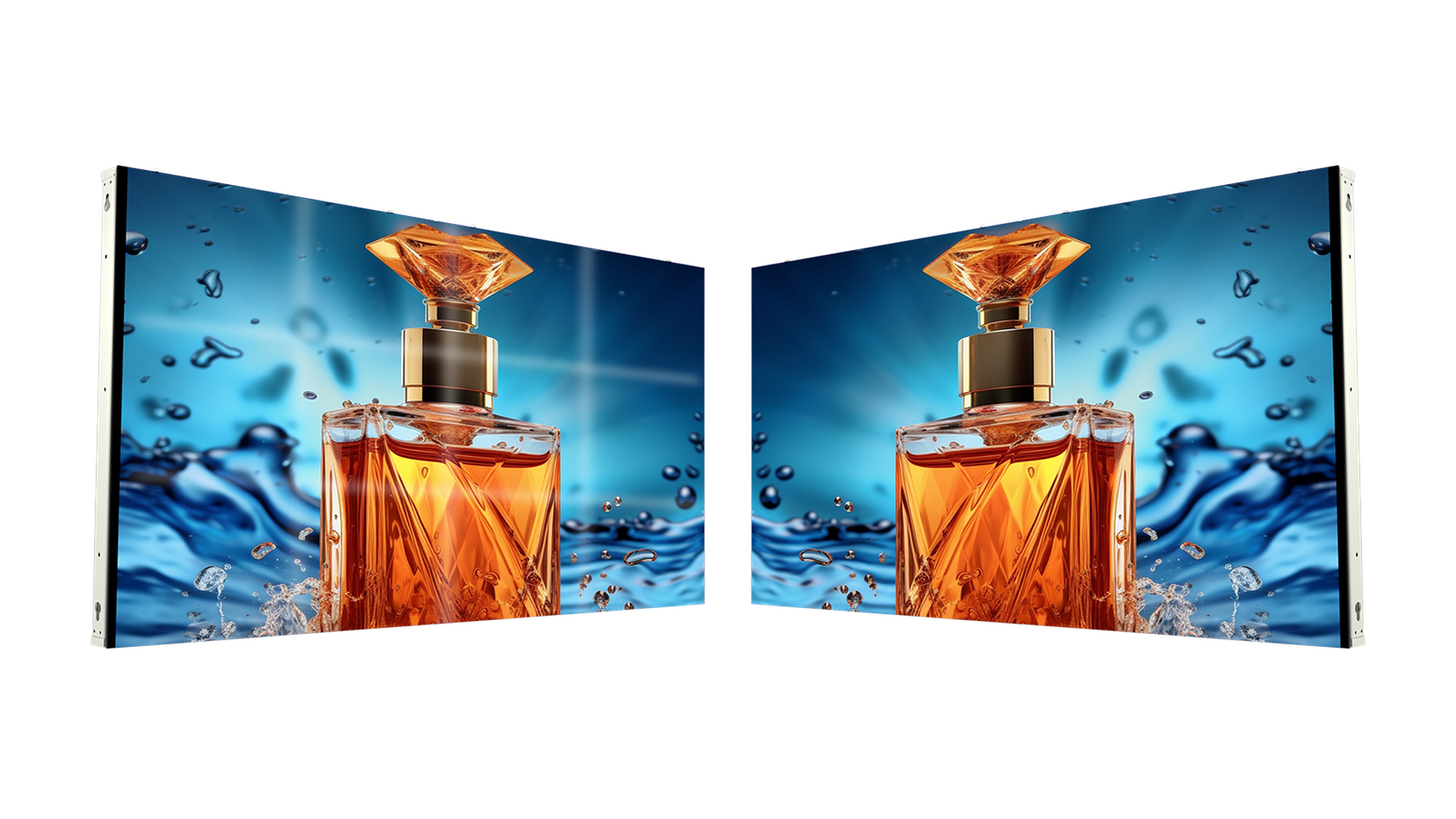

Uniform Heat Dissipation

The separated plastic kit design helps reduce heat transfer to the module back shell.
Grid-free display performance helps maintain a cleaner and more consistent visual effect.

03

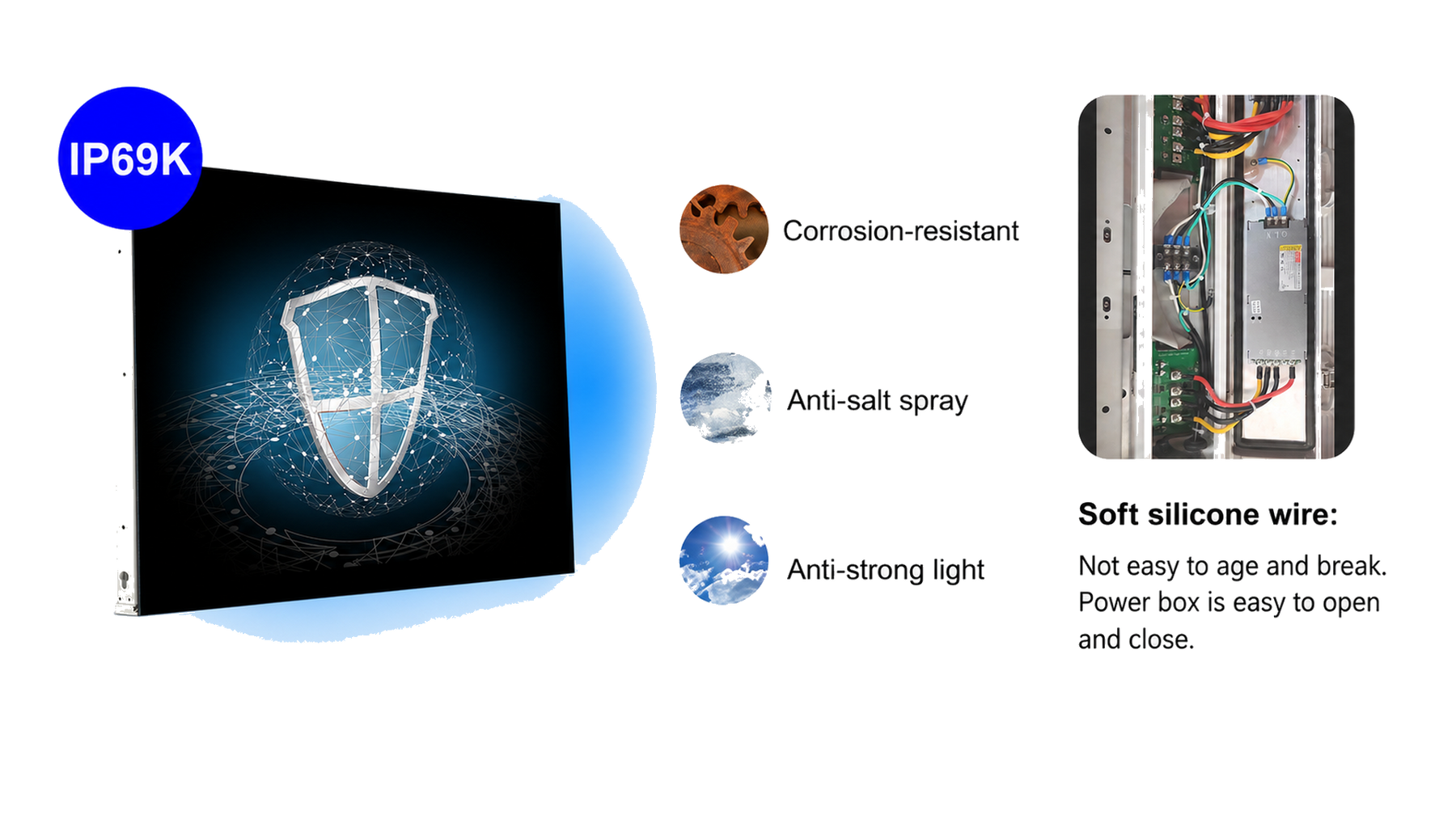

Strong Weather Resistance

IP69K protection helps the display withstand demanding outdoor environments.
Corrosion-resistant, anti-salt spray, and anti-strong-light features support long-term outdoor use.

04

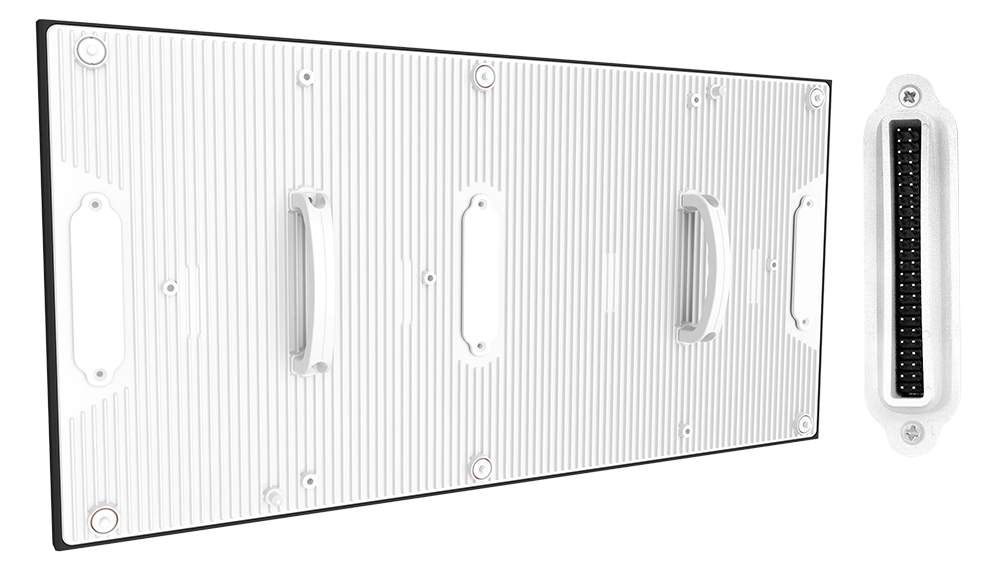

High-Precision Structure

Fully enclosed modules provide better airtightness and protection.
CNC high-precision cabinet machining helps improve installation accuracy and screen flatness.

05

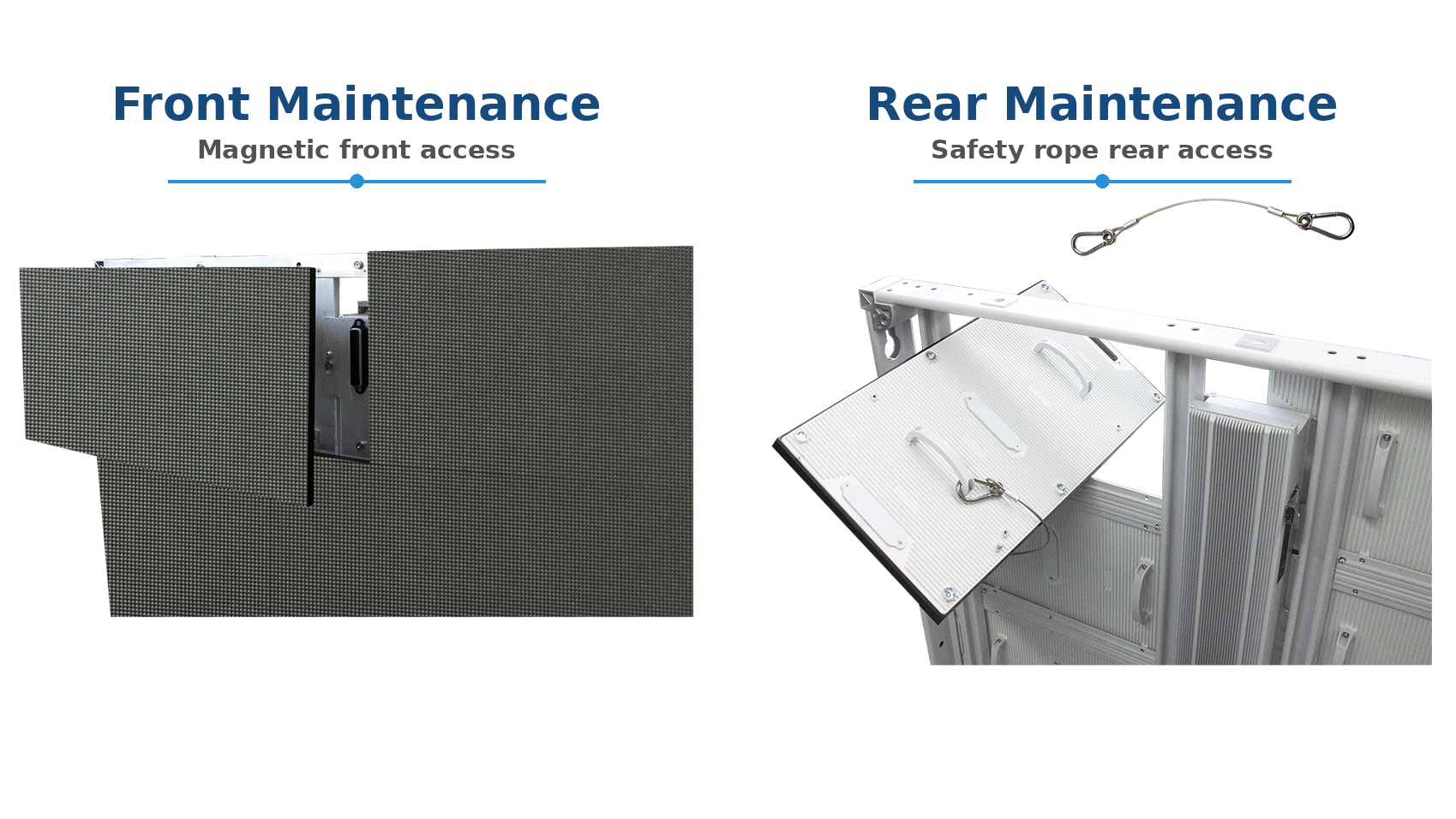

Front & Rear Maintenance

Complete front and rear maintenance design makes servicing more flexible.
Rear safety rope and front maintenance access improve convenience during installation and maintenance.

06

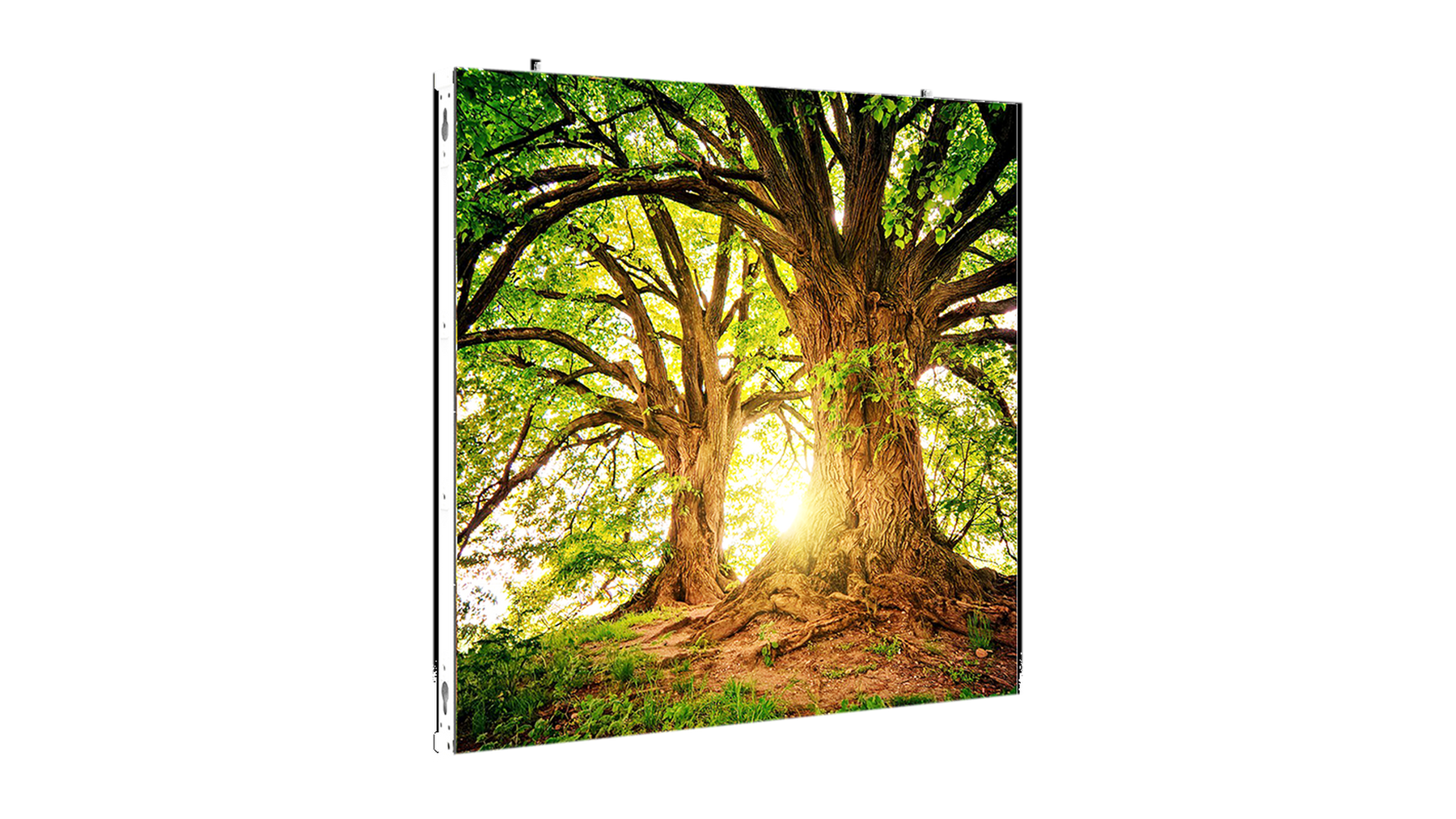

Energy-Saving Performance

Common cathode energy-saving circuit helps reduce standby power consumption.
Dynamic brightness technology supports high contrast and efficient outdoor display performance.

CASE STUDY

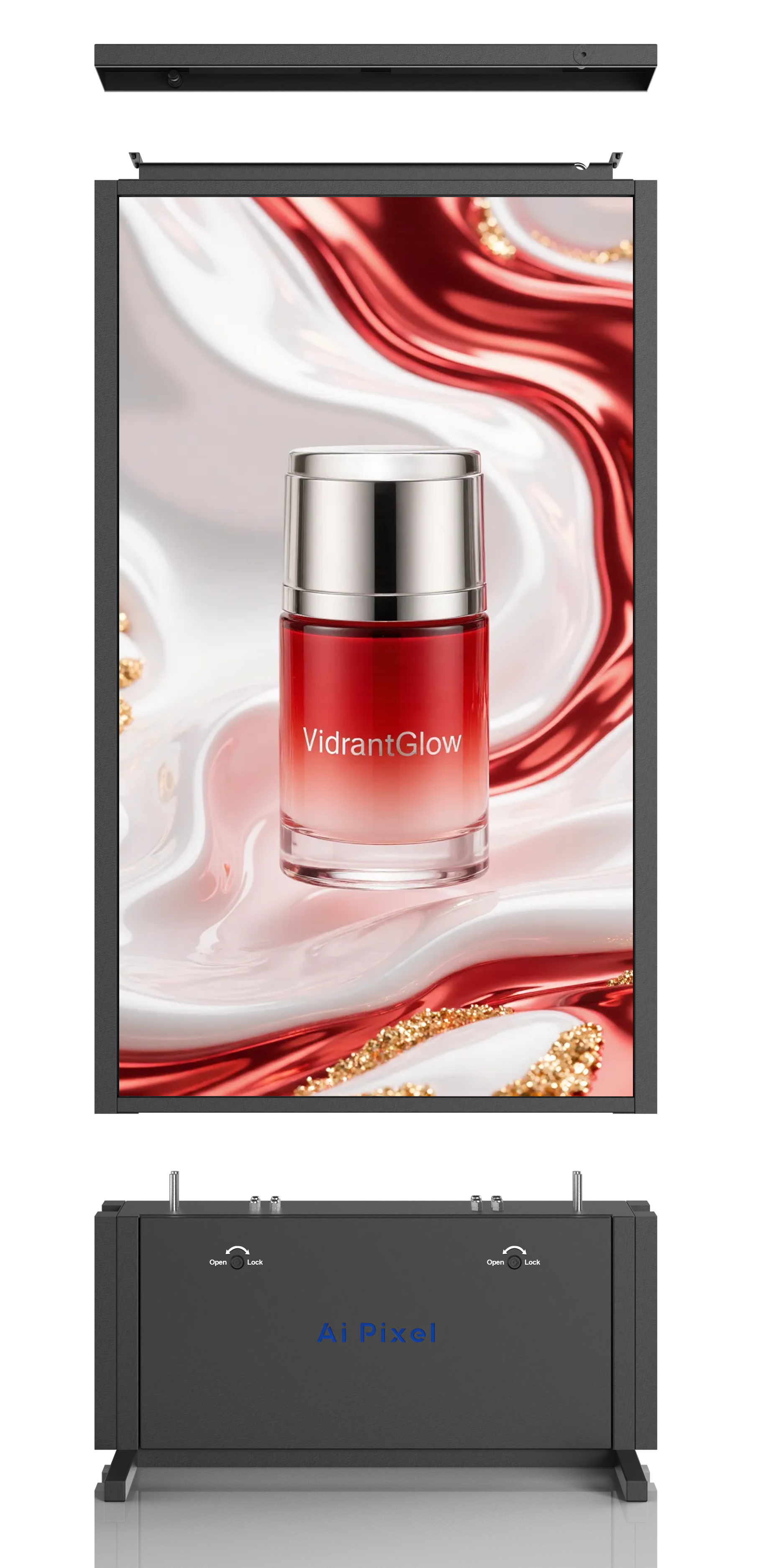

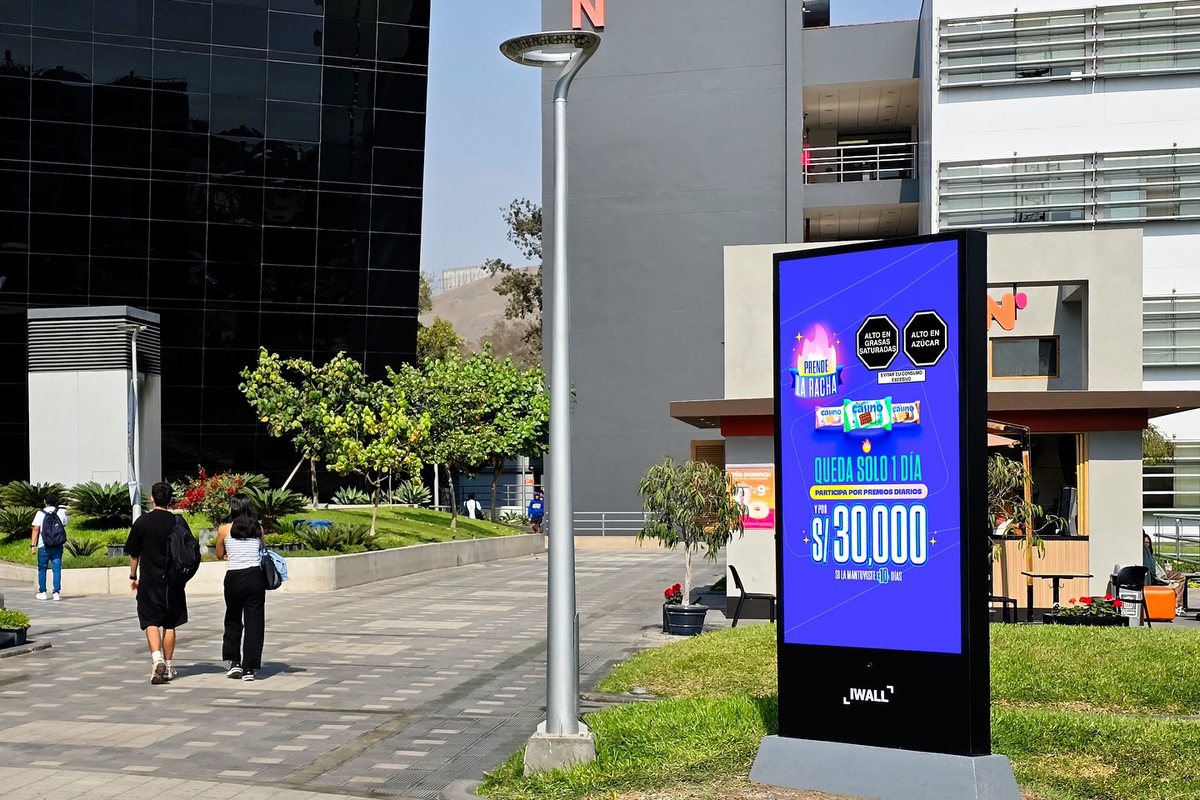

Peru Outdoor LED Project for University of Lima

AiPixel delivered a modular Adili outdoor LED poster display solution in Peru, supporting campus-facing digital communication with high brightness, reliable protection, and standardized poster formats.

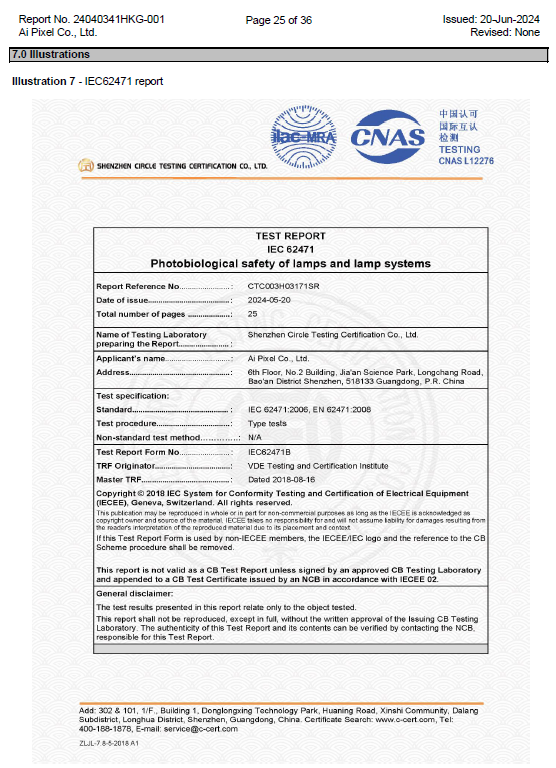

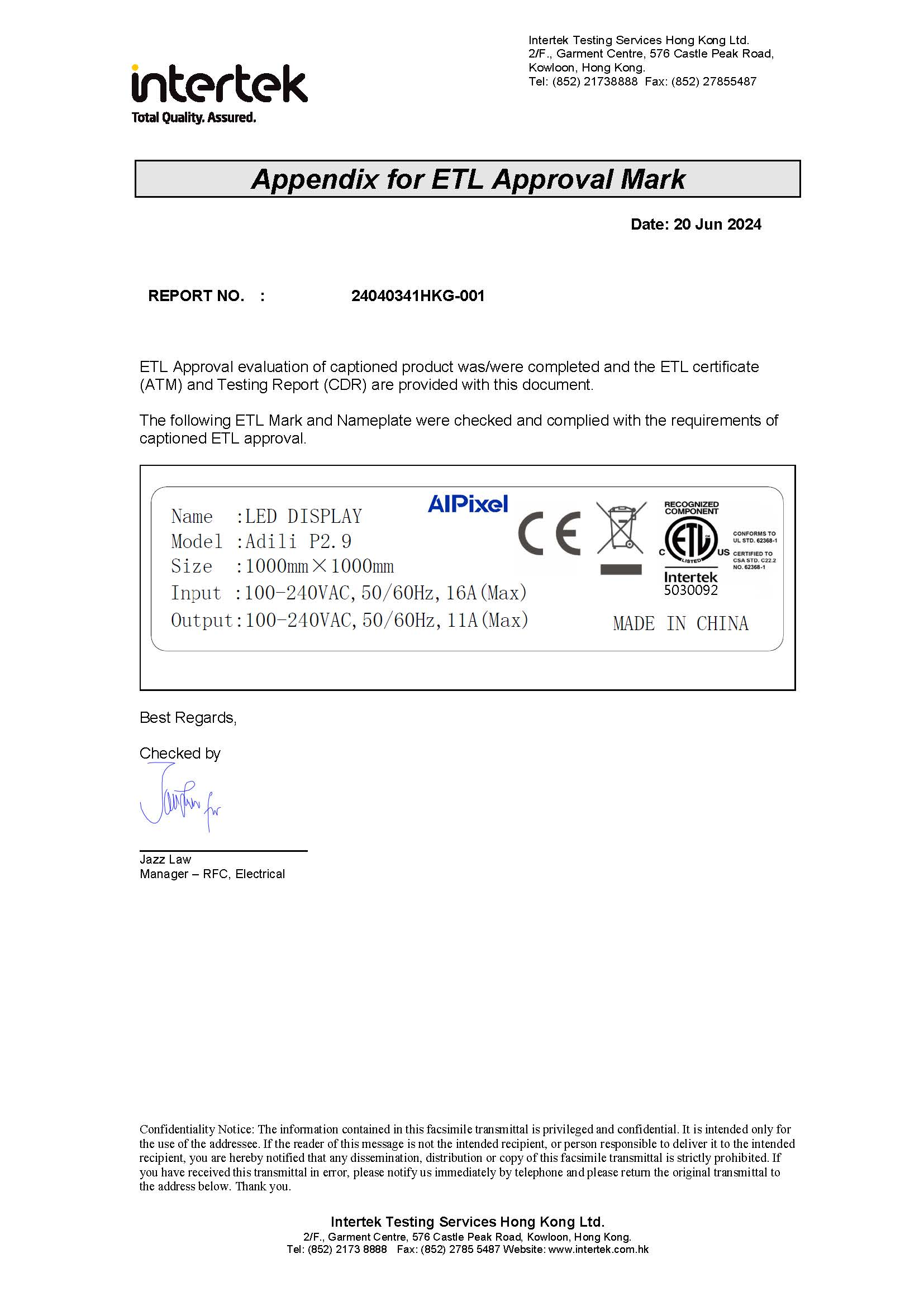

CERTIFICATIONS

SOLUTIONS

DIGITAL OUT-OF-HOME ADVERTISING

RENTAL & STAGING

COMMERCIAL RETAIL

CREATIVE DISPLAY & SPECIAL APPLICATIONS

ENTERTAINMENT & HOSPITALITY

TECHNICAL SPECIFICATIONS

Parameter	P1.5	P1.9	P2.6
Pixel Pitch (mm)	1.5	1.9	2.6
Pixel Density (Dot/㎡)	409,600	262,144	147,456
LED Type	MIP	MIP	MIP
Cabinet Size (mm)	500 × 1000 × 82 / 500 × 750 × 82 / 500 × 500 × 82	500 × 1000 × 82 / 500 × 750 × 82 / 500 × 500 × 82	500 × 1000 × 82 / 500 × 750 × 82 / 500 × 500 × 82
Cabinet Resolution	320 × 640 / 320 × 480 / 320 × 320	256 × 512 / 256 × 384 / 256 × 256	192 × 384 / 192 × 288/ 192 × 192
Cabinet Material	Aluminum Profile	Aluminum Profile	Aluminum Profile
Brightness (cd/㎡)	4000 ~ 4500	4000 ~ 4500	4000 ~ 4500
Service Access	Front / Rear	Front / Rear	Front / Rear
Protection Grade	IP69K, IP66	IP69K, IP66	IP69K, IP66
