01
Strong Weather Resistance
- IP69K protection supports reliable performance in demanding outdoor conditions.
- Corrosion-resistant, anti-salt spray, and anti-strong-light features improve durability.

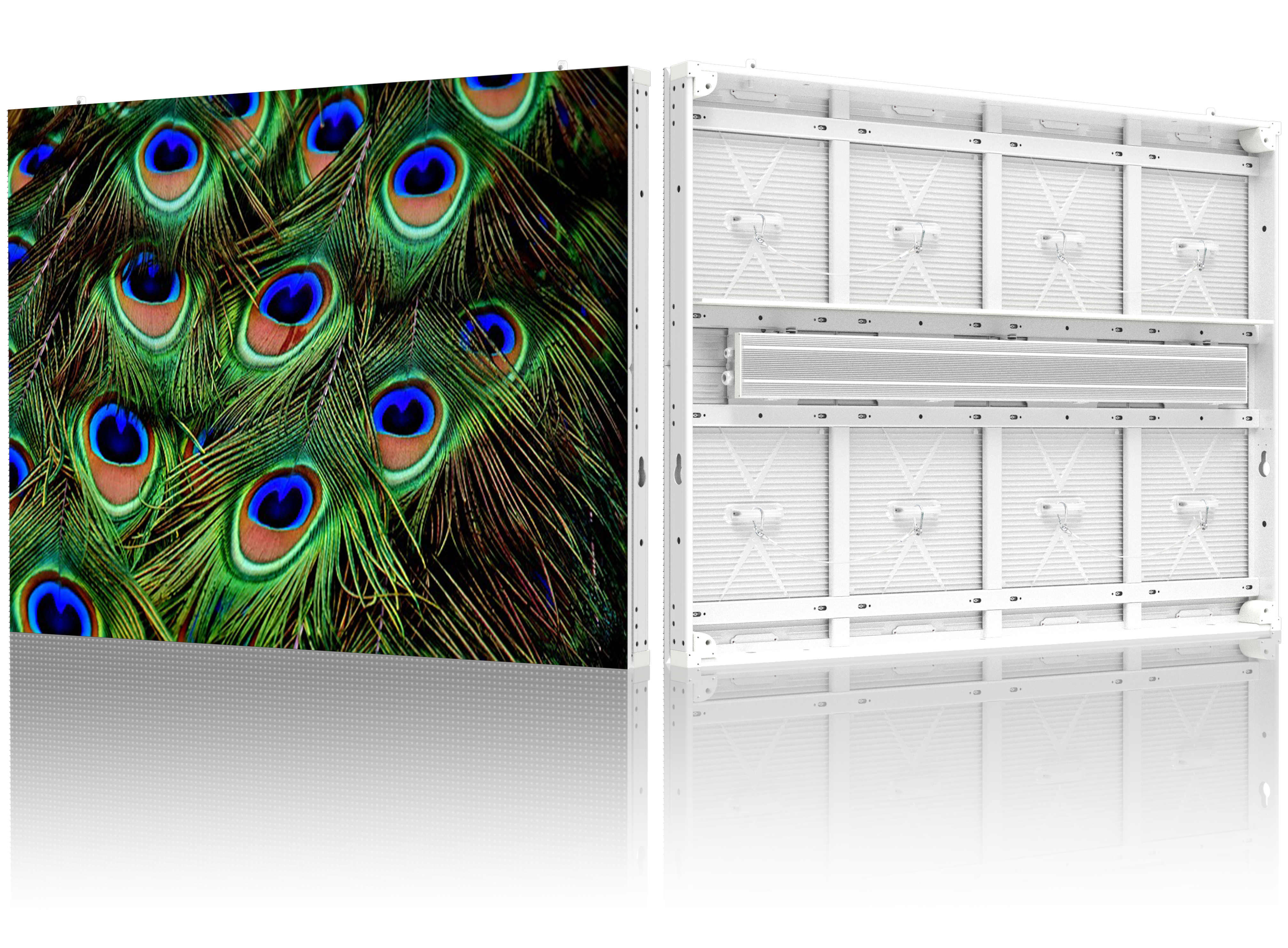

Afonso
- Pixel Pitch : P6.67/8/10
- LED Technology : SMD

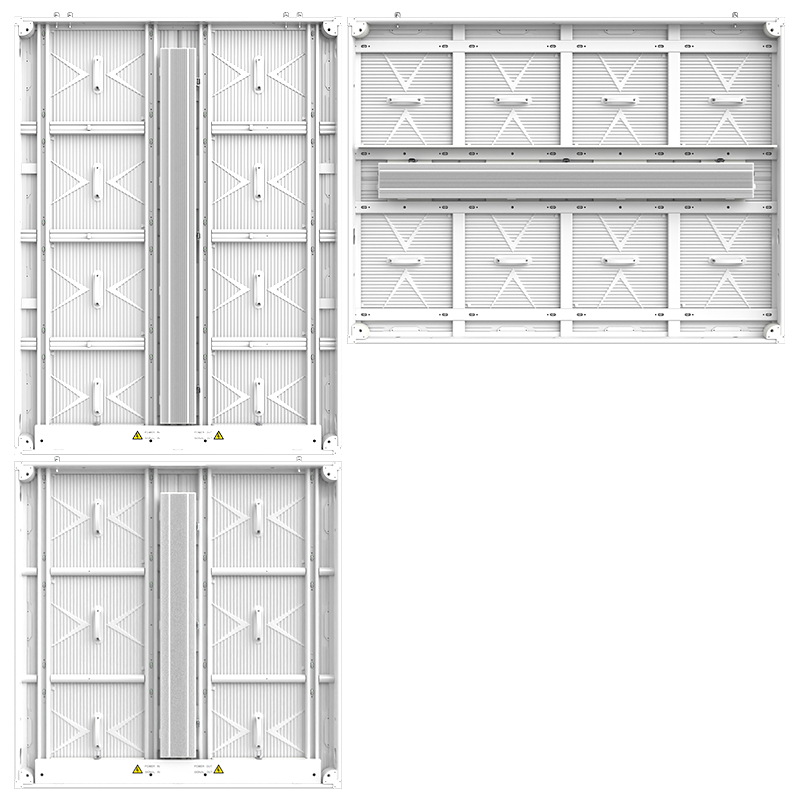

- Cabinet Size : 960x960/1280x84
- Module Size : 480x320
- Service Access : Front/Rear
Choose options
Afonso
Sale price$0.00
Outdoor Visual Performance
Common Cathode Design
02

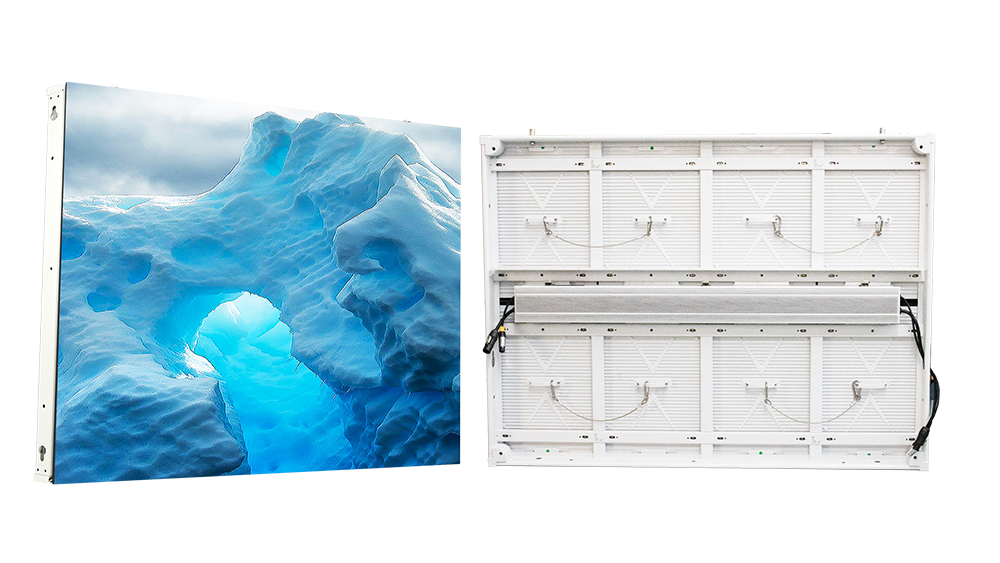

Common Cathode Design
- Common cathode technology helps reduce power consumption and improve energy efficiency.
- Supports over 10,000 nits brightness with lower IC temperature for stable outdoor performance.
03

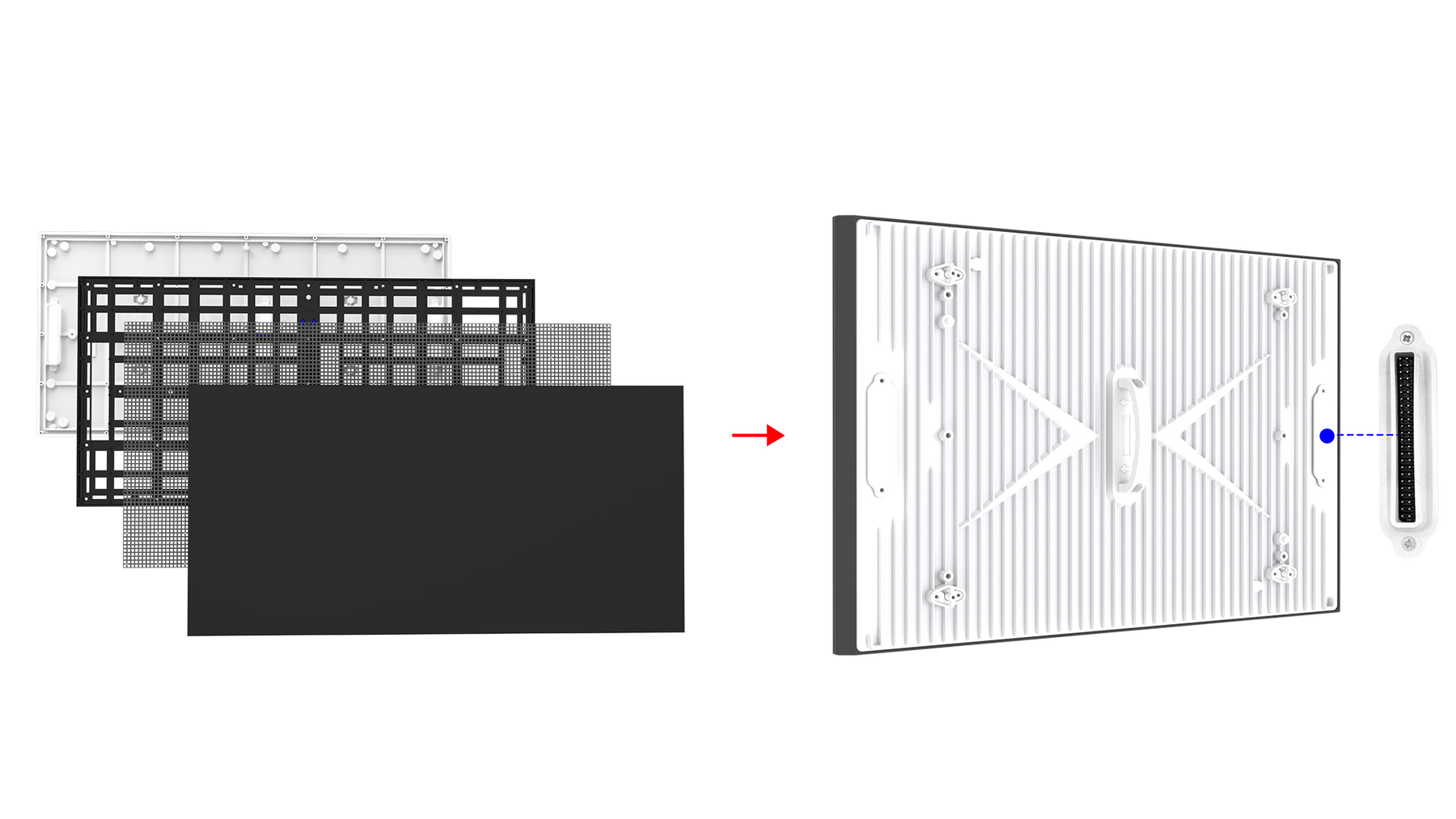

Long-Lasting Use
- Polymer plastic kit improves structural stability in harsh outdoor environments.
- Low deformation design helps prevent peeling and supports long-term reliability.
04

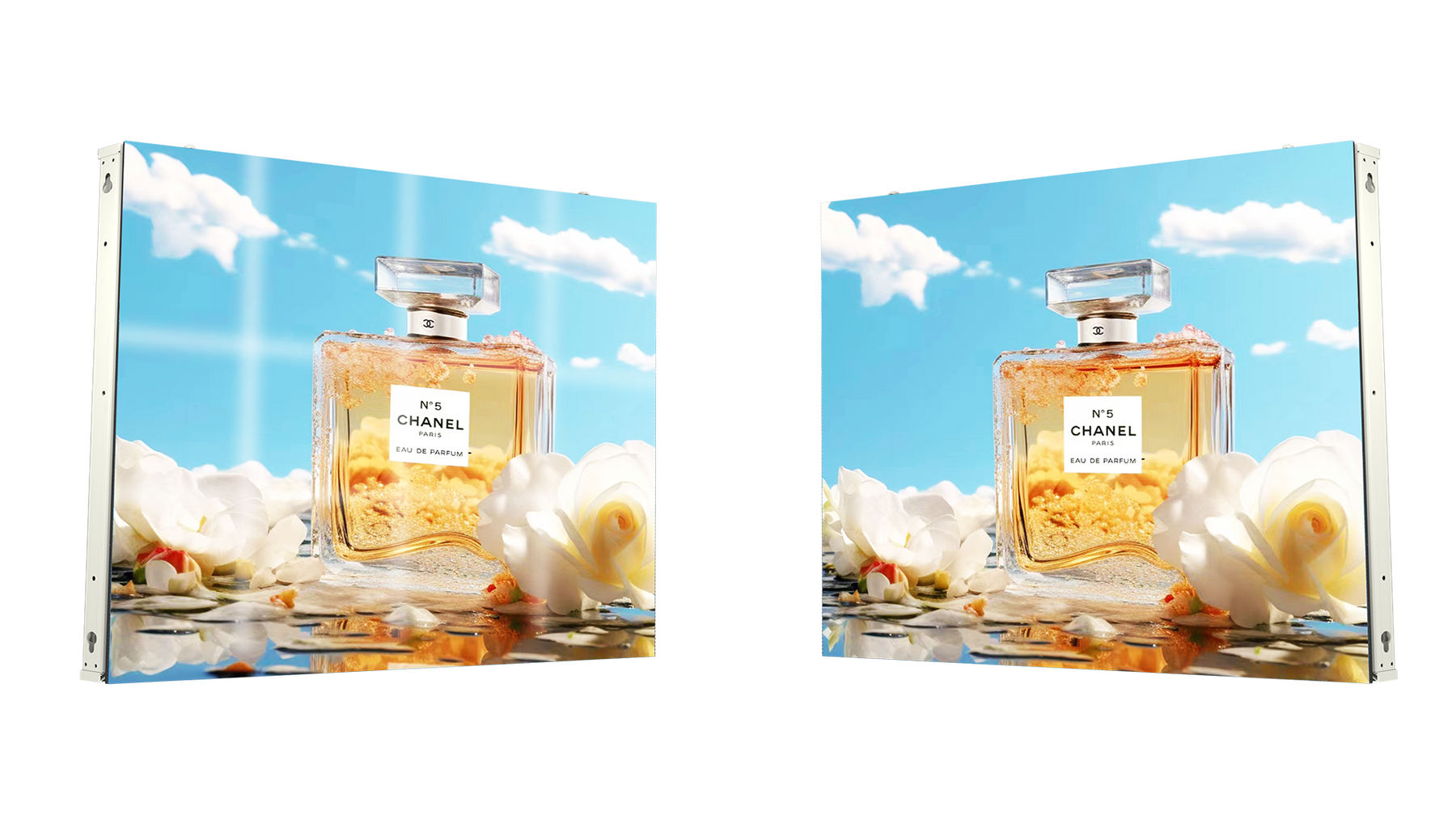

Uniform Heat Dissipation
- The separated plastic kit design helps reduce heat transfer to the module back shell.
- Grid-free display performance creates a cleaner and more consistent viewing effect.
05
Front & Rear Maintenance
- Complete front and rear maintenance design makes service access more flexible.
- Center control box maintenance and safety rope design improve installation and servicing convenience.
06

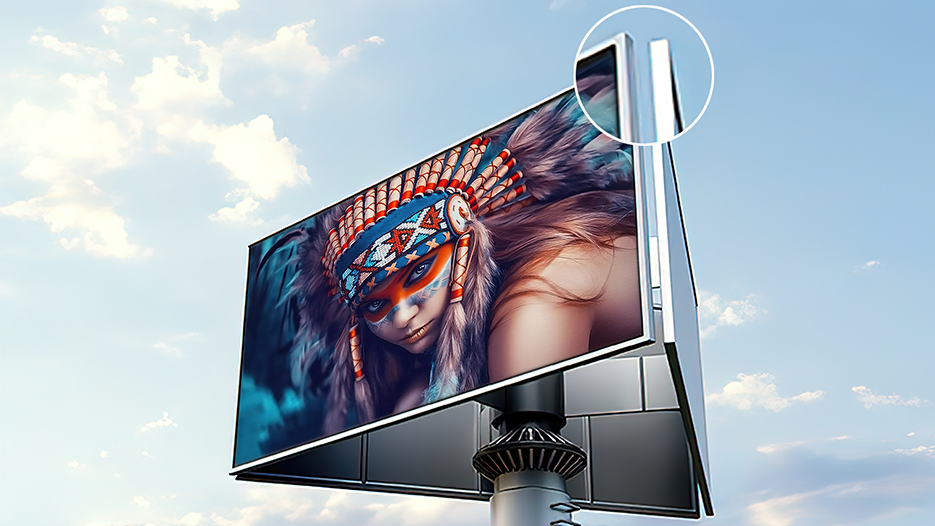

Outdoor Visual Performance
- High brightness and 160° wide viewing angle deliver clear visibility in outdoor environments.
- Light and thin cabinet design helps reduce steel structure requirements.
CASE STUDY

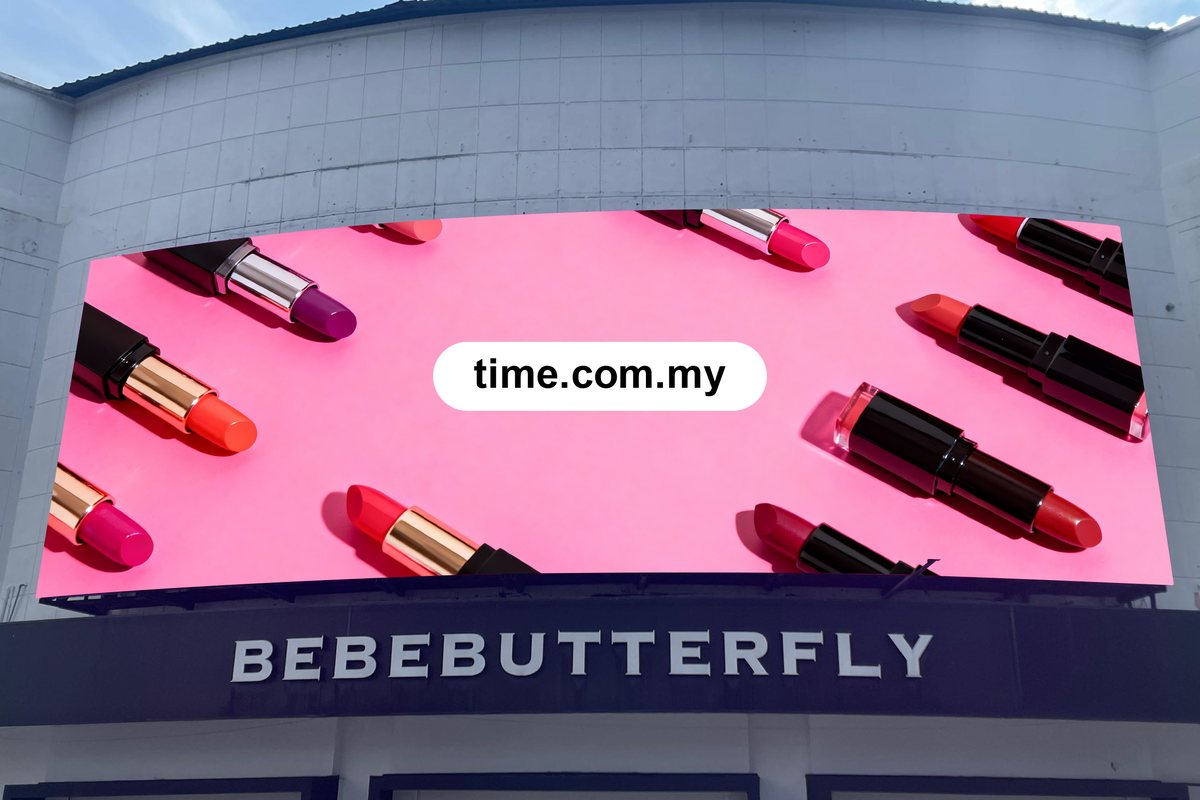

Malaysia 44㎡ Outdoor P8 LED Display Project
AiPixel customized a 44㎡ Afonso P8 outdoor LED display for Malaysia, delivering bright, stable, and wide-angle visuals for commercial communication in tropical outdoor conditions.

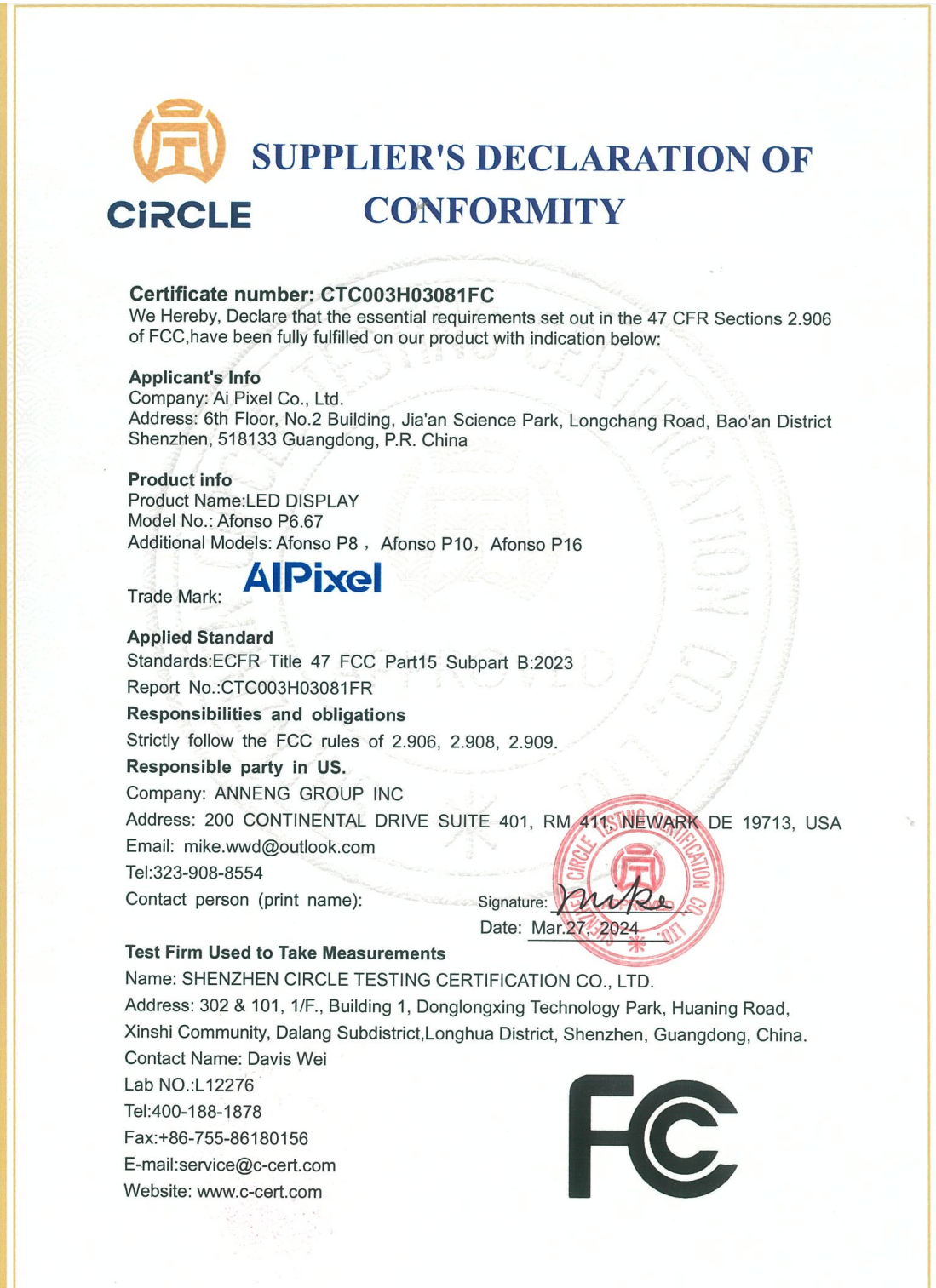

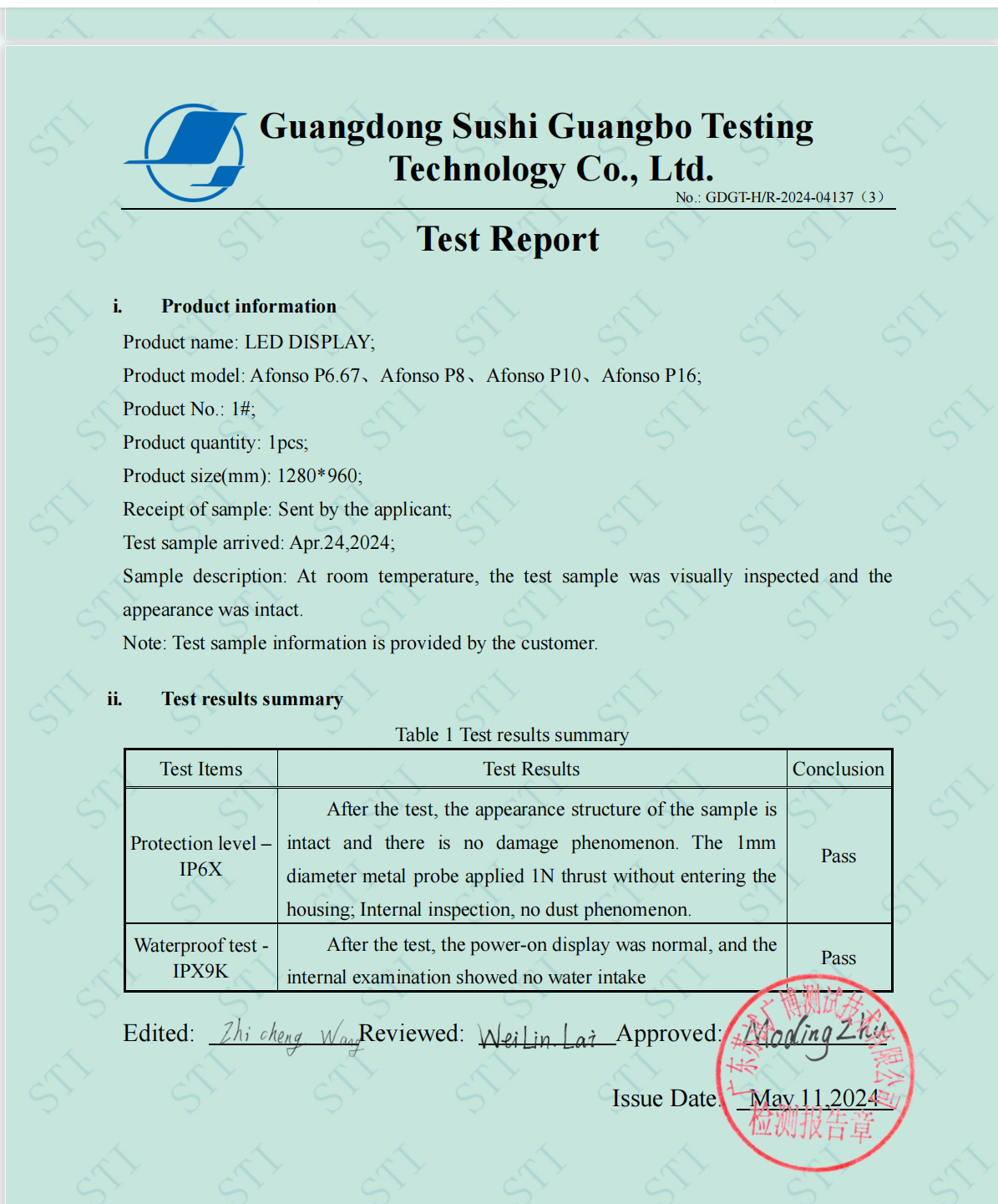

CERTIFICATIONS
SOLUTIONS
TECHNICAL SPECIFICATIONS
| Parameter | P6.67 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
| Pixel Density (Dot/㎡) | 22,500 | 15,625 | 10,000 |
| LED Type | SMD | SMD | SMD |
| Cabinet Size (mm) | 1280 × 960 × 84 / 960 × 960 × 84 / 960 × 1280 × 84 | 1280 × 960 × 84 / 960 × 960 × 84 / 960 × 1280 × 84 | 1280 × 960 × 84 / 960 × 960 × 84 / 960 × 1280 × 84 |
| Cabinet Resolution | 192 × 144 / 144 × 144 / 144 × 192 | 160 × 120 / 120 × 120 / 120 × 160 | 128 × 96 / 96 × 96 / 96× 128 |
| Cabinet Material | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Brightness (cd/㎡) | 6500 / 10000 / 20000 | 6500-10000 | 6500-10000 |
| Service Access | Front / Rear | Front / Rear | Front / Rear |
| Protection Grade | IP69K, IP66 | IP69K, IP66 | IP69K, IP66 |
